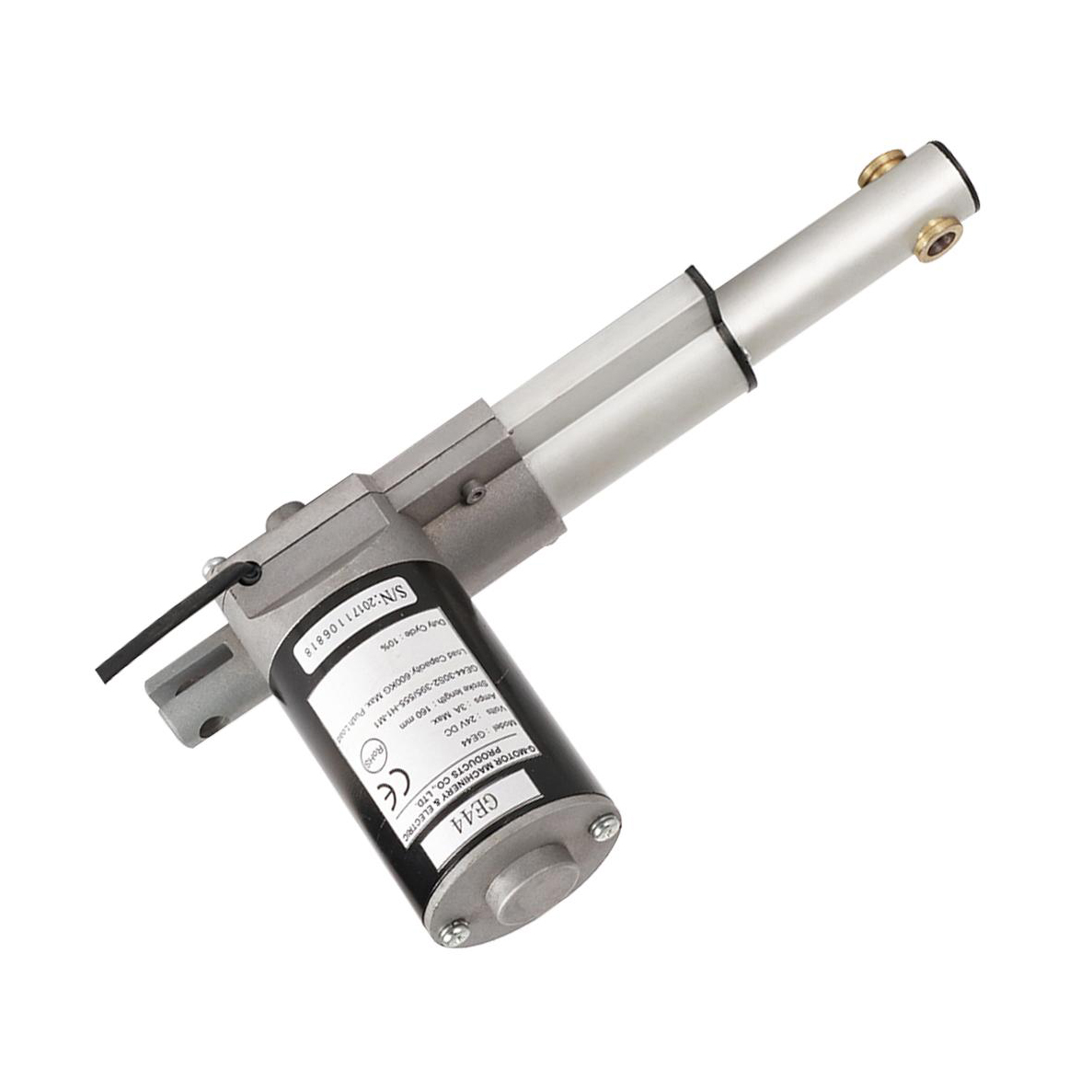

GE44
Guangdong H&I Actuator Technology Co., Ltd was founded in 2004, is China's leading electric push rod/lift motor manufacturer
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Enhanced plastic gearhousing
◆Worm gear
◆Aluminum inner tube
◆Aluminum outer tuber
◆ACME screw
◆Built-in limit switch
◆Both for push and pull
◆Protection IP40
- Parameters
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Enhanced plastic gearhousing
◆Worm gear
◆Aluminum inner tube
◆Aluminum outer tuber
◆ACME screw
◆Built-in limit switch
◆Both for push and pull
◆Protection IP40
Datasheets
| Working Voltage | 12VDC,24VDC |
| Duty Cycle | 10%(1min on, 9min off) |
| Push Force | 6000N |
| Pull Force | 4000N |
| GearRatio | 40:1 20:1 |
| 安装尺寸 | L=S+150 (30≤S≤400) |
Application
◆Smart Home
◆Massage Chair
◆Lifting Bed
◆Other
Parameters
NO. | Gear ratio | Voltage(V) | Max.staticload(N) | Max.dynamic load(N) | Current (A) | Speed (mm/s) | ||
| No load | Max.load | No load | Max.load | |||||
| A1 | 20:1 | 12 | 4000 | 4000 | 1.2 | 7.5 | 8.2 | 5.2 |
| A2 | 24 | 4000 | 4000 | 0.8 | 3.5 | 8.2 | 5.5 | |
| B1 | 40:1 | 12 | 6000 | 6000 | 1.2 | 7.5 | 4.2 | 2.8 |
| B2 | 24 | 6000 | 6000 | 0.8 | 3.5 | 4.2 | 3 | |

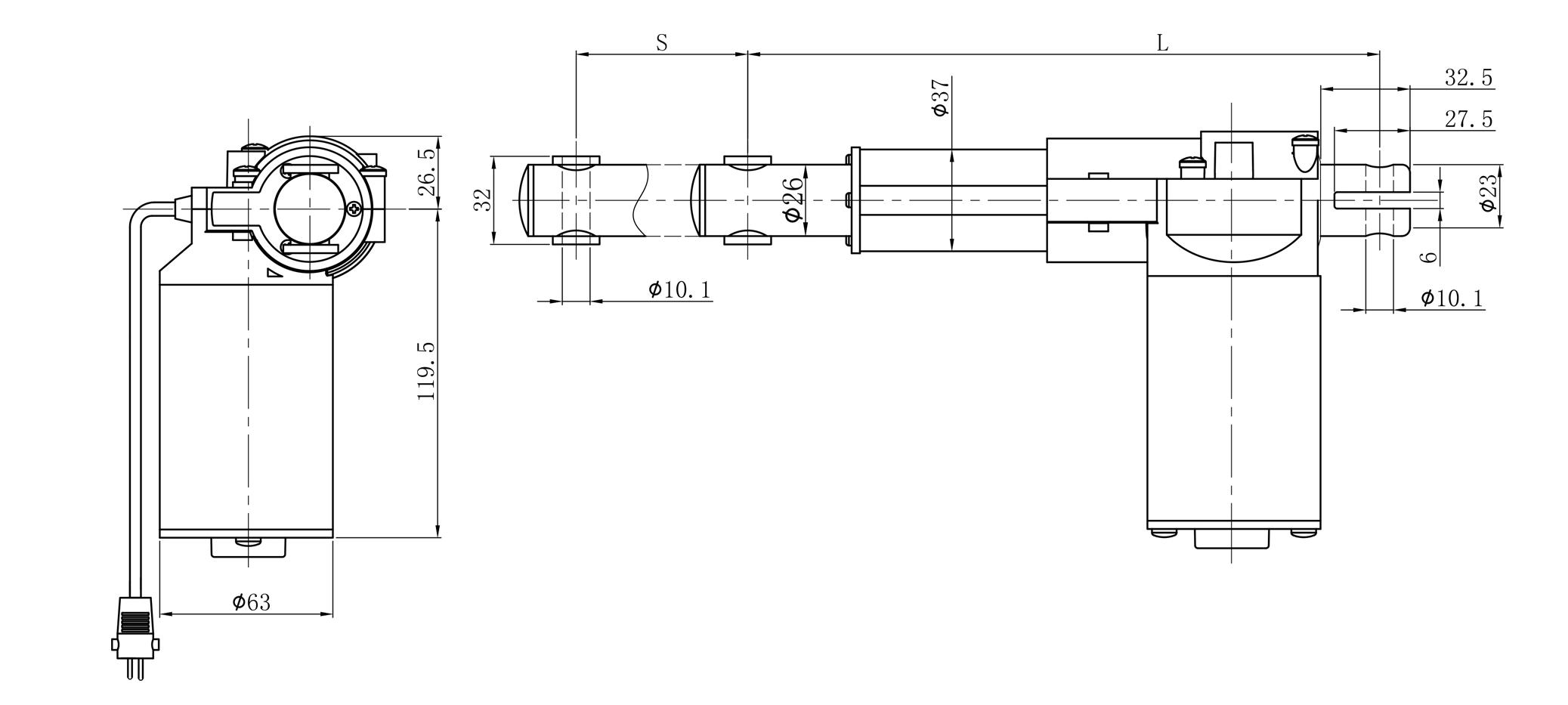

Product Profile

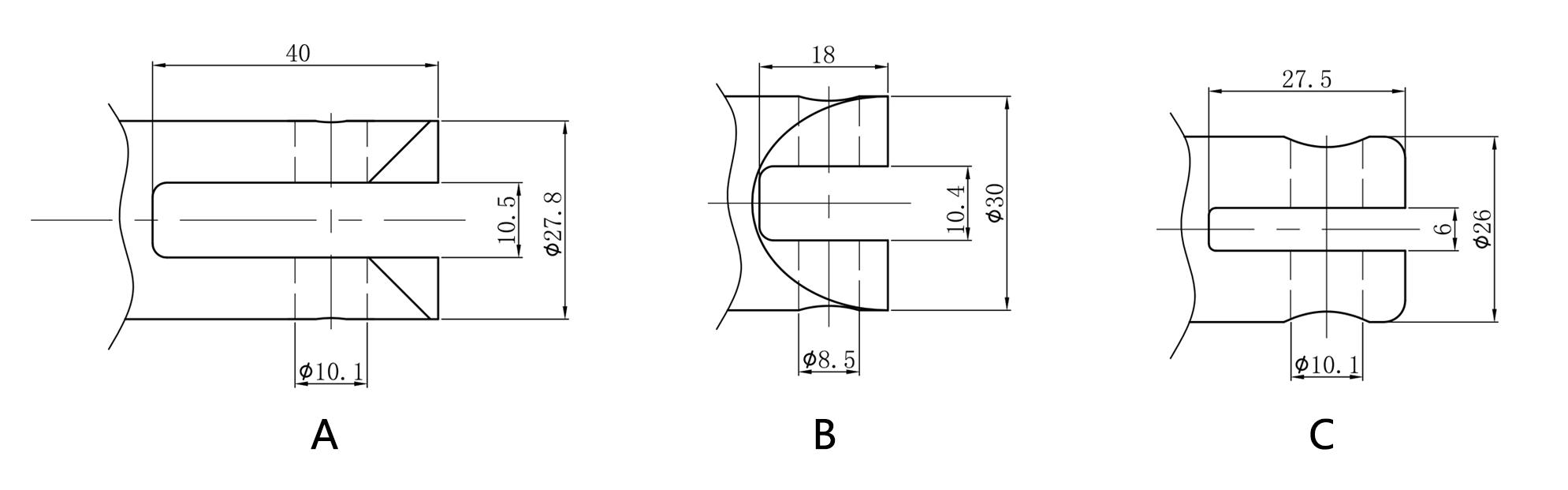

BottomClevis

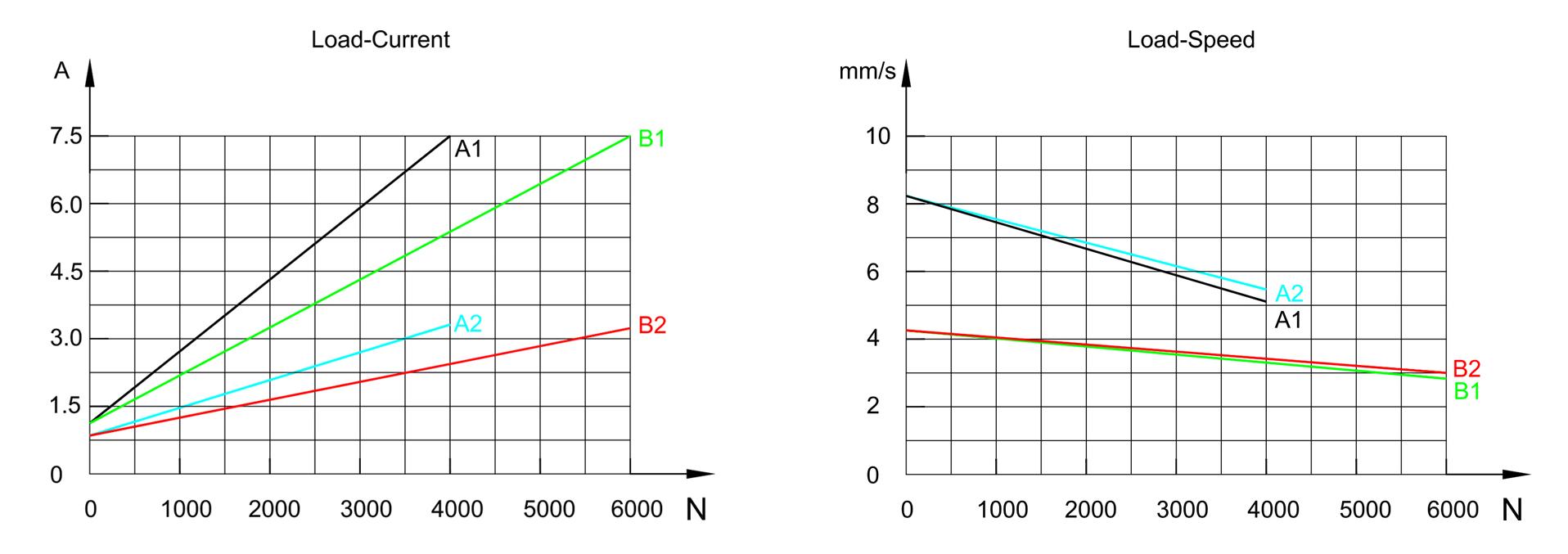

Performance Curve
