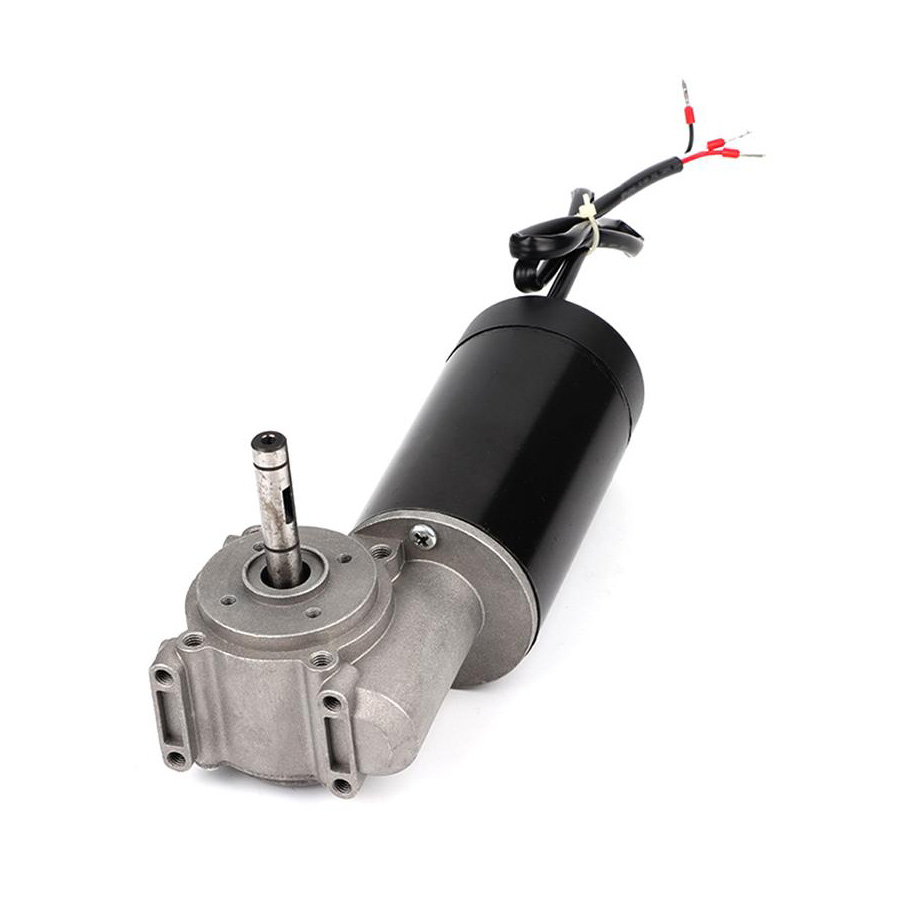

GK44
Guangdong H&I Actuator Technology Co., Ltd was founded in 2004, is China's leading electric push rod/lift motor manufacturer
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Quiet brushed DC motor
◆Enhanced aluminum gear housing
◆Worm gear
◆Low speed with high torque
◆Production:IP44
- Parameters
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Quiet brushed DC motor
◆Enhanced aluminum gear housing
◆Worm gear
◆Low speed with high torque
◆Production:IP44
Datasheets
| Working Voltage | 12VDC,24VDC |
| Duty Cycle | 10%(1min on,9min off) |
| Output Torque | >2.5N.M |
| Rated Current | 3Amp |
| otation Speed | 230RPM |
| Gear Ratio | 15.5:1 |
Application
◆Smart Home
◆Lift/CNC door opener
◆Other
Options
◆Reed sensor
◆Optical Encoder
Certificate
◆CE
Parameters
| NO. | Model | Voltage(V) | RPM | N.m | Current (A) | Rotation speed(rpm) | ||
| No load | Max.load | No load | Max.load | |||||
| A1 | GK4430 | 24 | 4300 | 2.5 | 0.8 | 3 | 280 | 210 |
| A2 | GK4445 | 24 | 4300 | 3.5 | 1.2 | 4.5 | 280 | 220 |

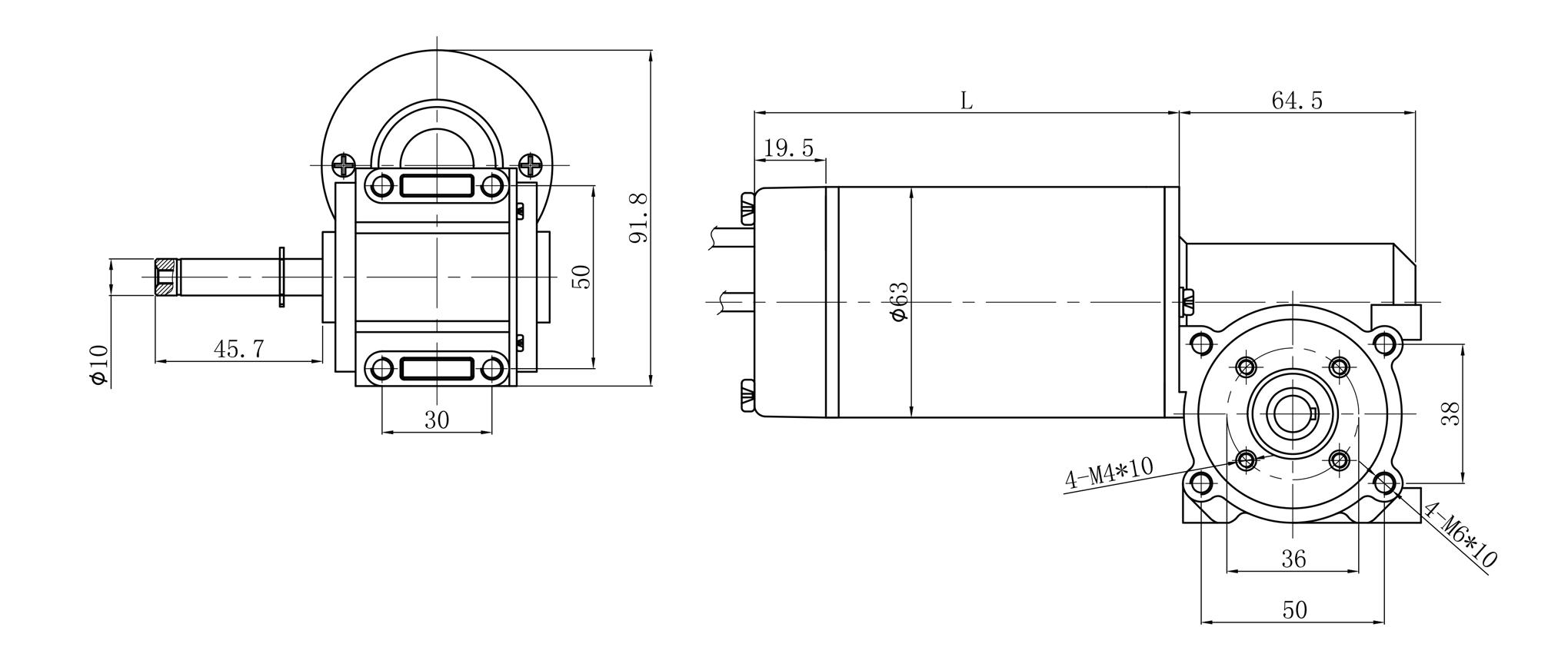

Product Profile

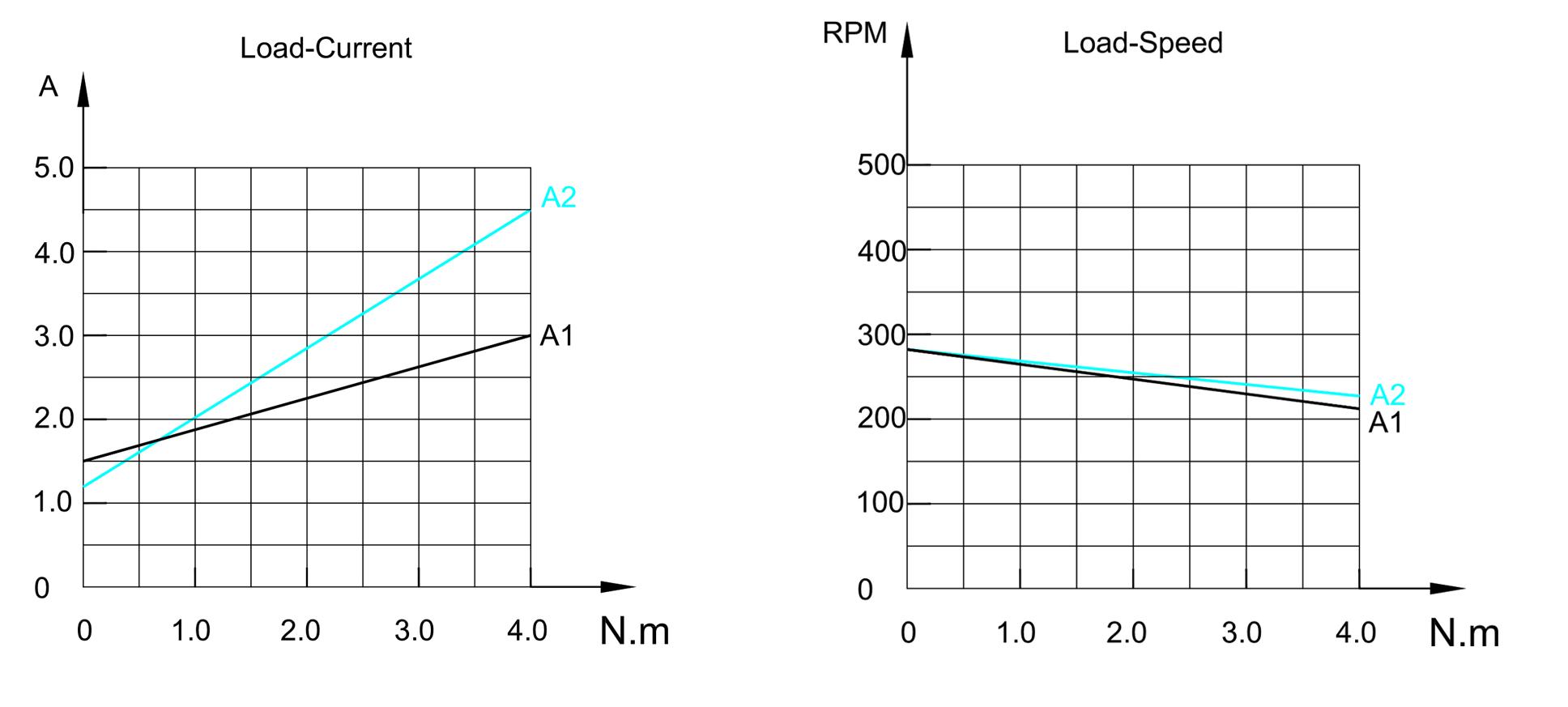

Performance Curve
