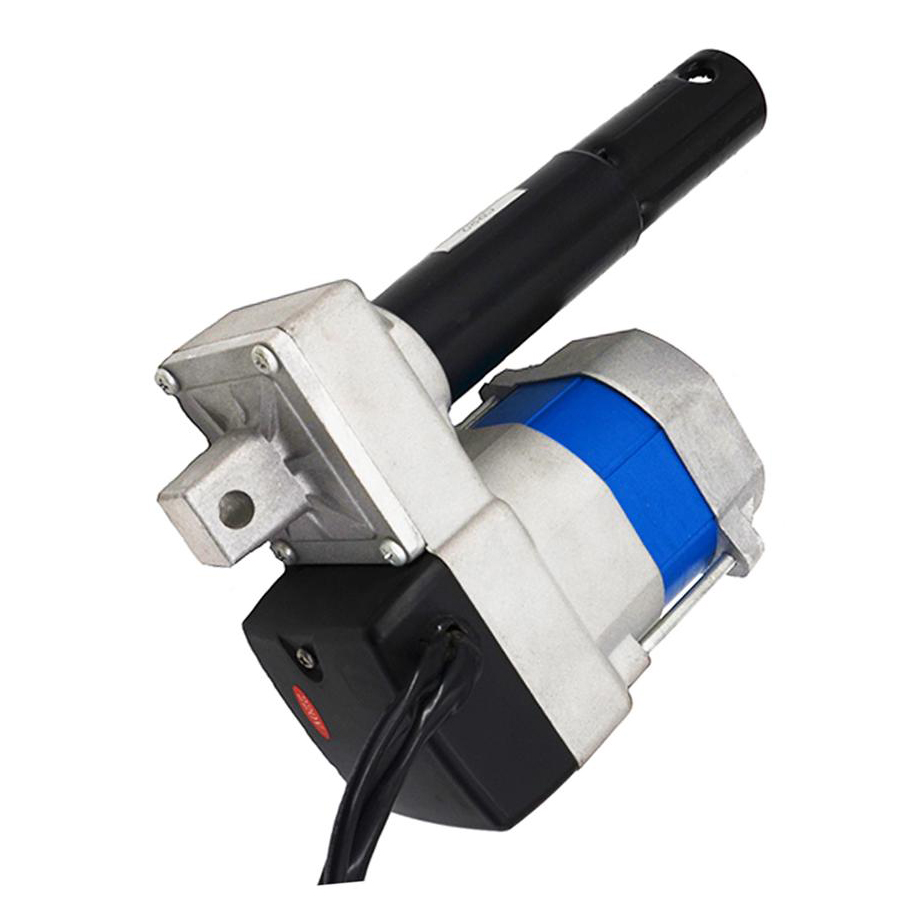

GR82
Guangdong H&I Actuator Technology Co., Ltd was founded in 2004, is China's leading electric push rod/lift motor manufacturer
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Aluminum gear housing
◆Enhanced plastic gears
◆Metal inner tube
◆Plastic dust resistant shield
◆ACME Screw
◆Built-in start capacitor
◆Built-in thermal protector(125C)
◆Built-in default cam system
◆Built-in limit switch
◆Protection IP00
- Parameters
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Aluminum gear housing
◆Enhanced plastic gears
◆Metal inner tube
◆Plastic dust resistant shield
◆ACME Screw
◆Built-in start capacitor
◆Built-in thermal protector(125C)
◆Built-in default cam system
◆Built-in limit switch
◆Protection IP00
Datasheets
| Working Voltage | 110V/220V AC,50Hz/60Hz |
| Duty Cycle | 10%(1min on,9min off) |
| Push Force | 4000N(Max.) |
| Gear Ratio | 25:1 |
| Thrust Speed | 3.7mm/sec |

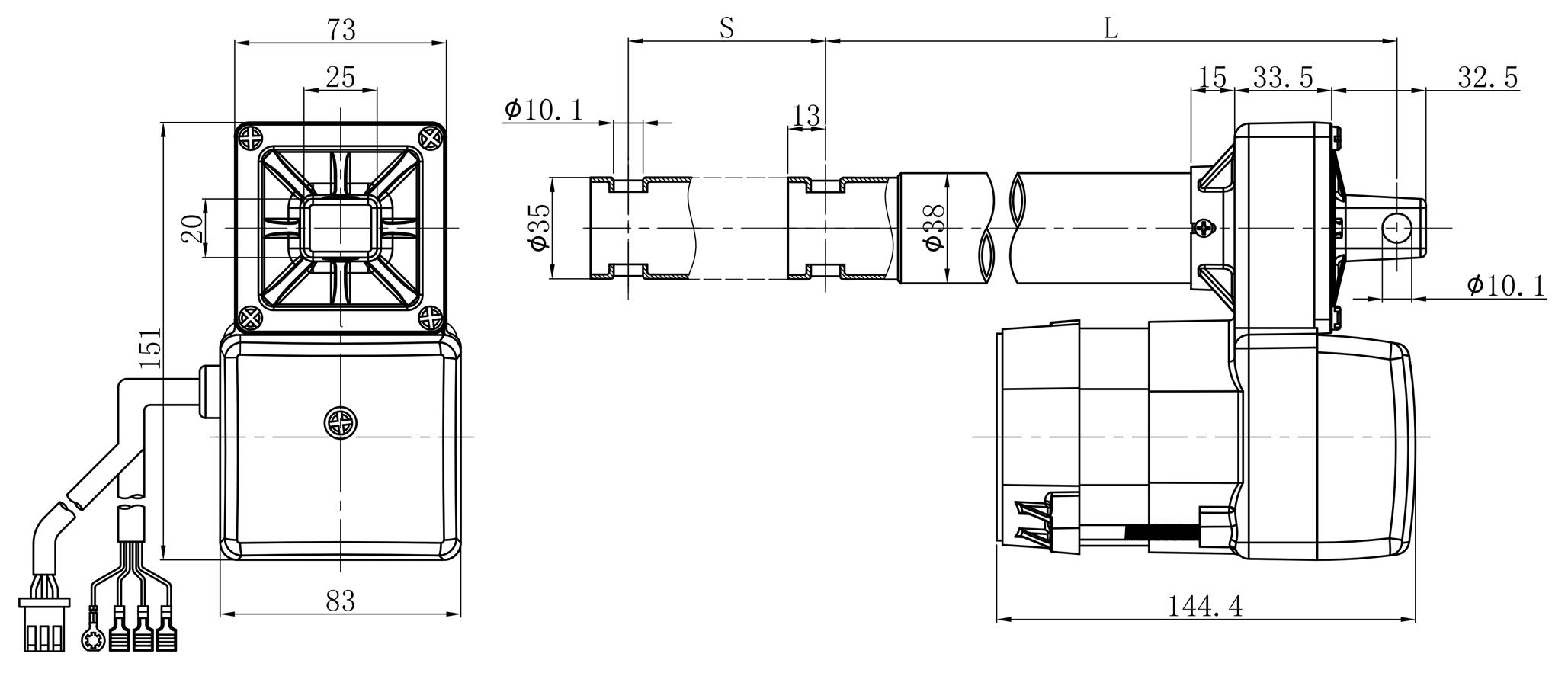

| Fixing Dimension | L=S+125 (30≤S≤350) |
Application
◆Running Machine
◆Other
Option
◆Potentiometer
Certificate
◆CE
Parameters
| NO. | Model | Voltage(V) | Max.static load(N) | Max.dynamic load(N) | Current (A) | Speed (mm/s) | ||
| No load | Max.load | No load | Max.load | |||||
| A1 | GR82-8230 | 110 | 8000 | 4000 | 1 | 1.5 | 3.7 | 2.9 |
| A2 | 220 | 8000 | 4000 | 0.4 | 0.7 | 3.2 | 2.7 | |
Product Profile

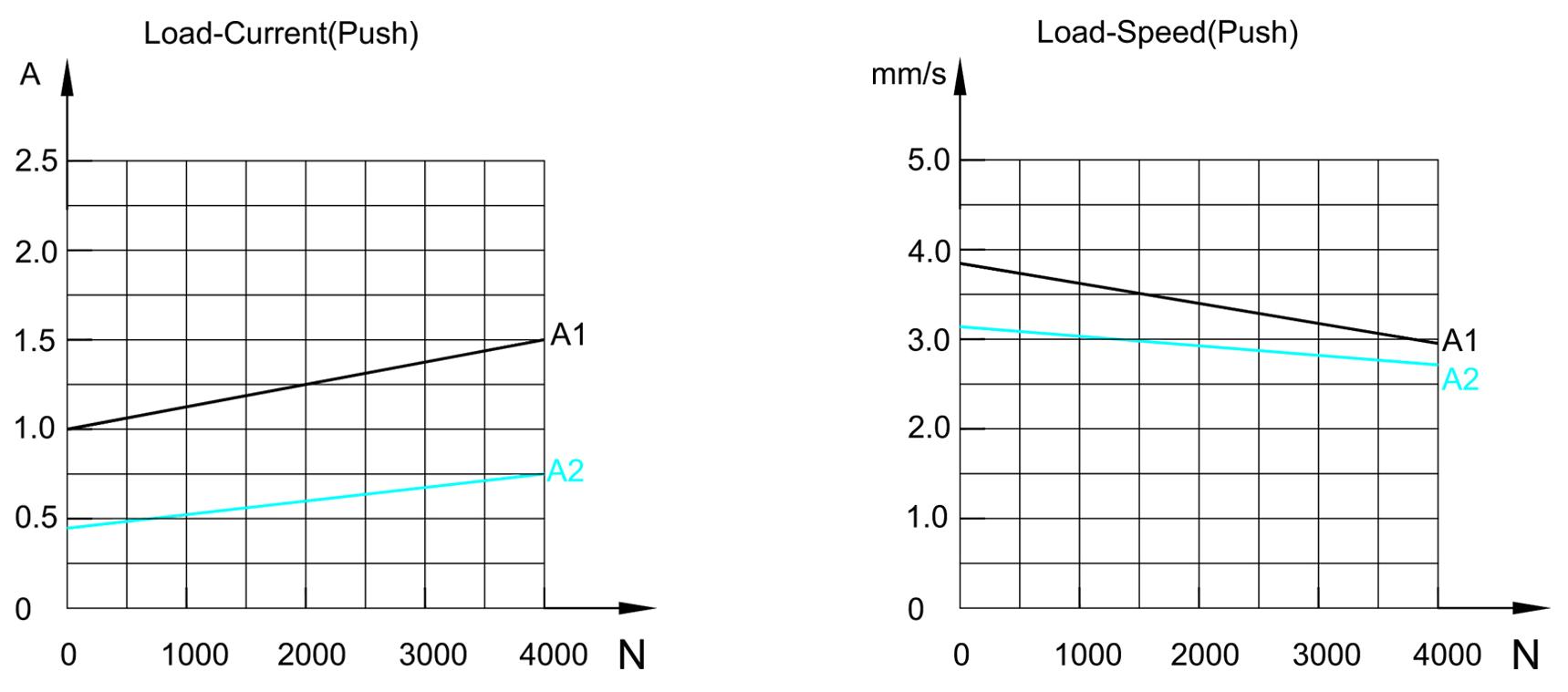

PerformanceCurve
