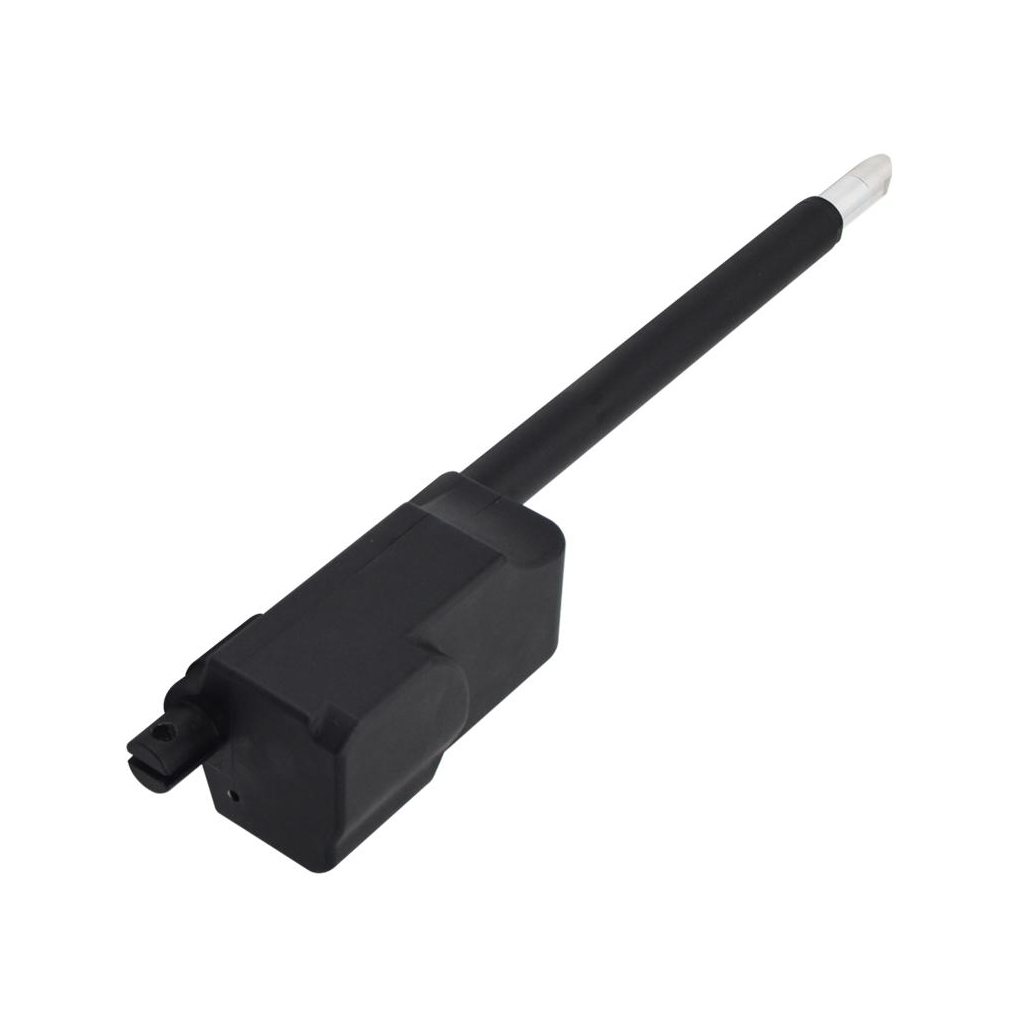

SPT28
Guangdong H&I Actuator Technology Co., Ltd was founded in 2004, is China's leading electric push rod/lift motor manufacturer
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Aluminum gear housing
◆Plastic worm gear
◆Stainless steel inner tube
◆Metal outer tube
◆ACME Screw
◆Built-in limit switch
◆Built-in default cam system
◆Enhanced plastic housing
◆Protection:IP66
◆Noise ≤50dB
- Parameters
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Aluminum gear housing
◆Plastic worm gear
◆Stainless steel inner tube
◆Metal outer tube
◆ACME Screw
◆Built-in limit switch
◆Built-in default cam system
◆Enhanced plastic housing
◆Protection:IP66
◆Noise ≤50dB
Datasheets
| Working Voltage | 12VDC,24VDC |
| Duty Cycle | 10%(1min on,9min off) |
| Push Force | 2000N(Max.) |
| Thrust Speed | 9mm/sec(Max.) |

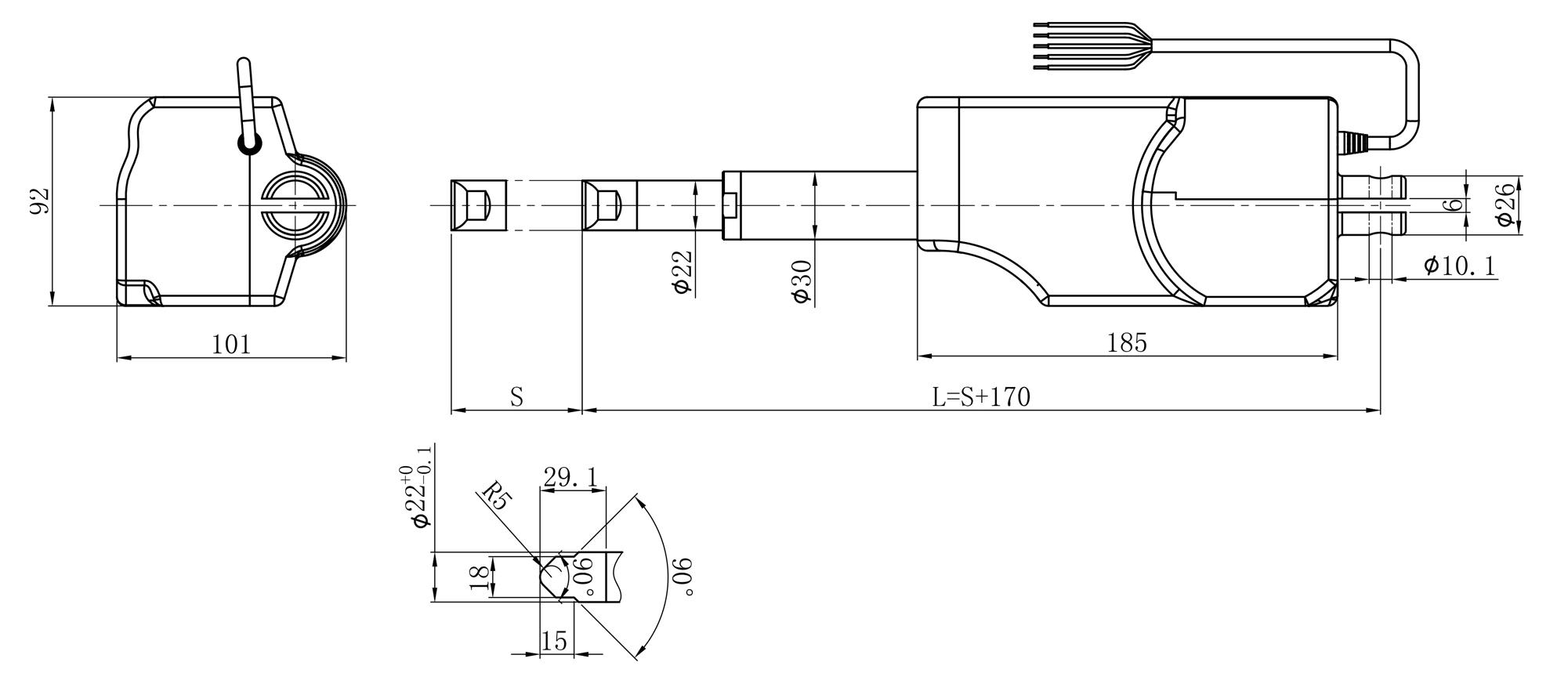

| Fixing Dimension | L=S+170 (82≤S≤400) |
Application
◆Smart Home
◆Lifting Bed
◆Lifting Chair
◆Medical Equipment
◆Other

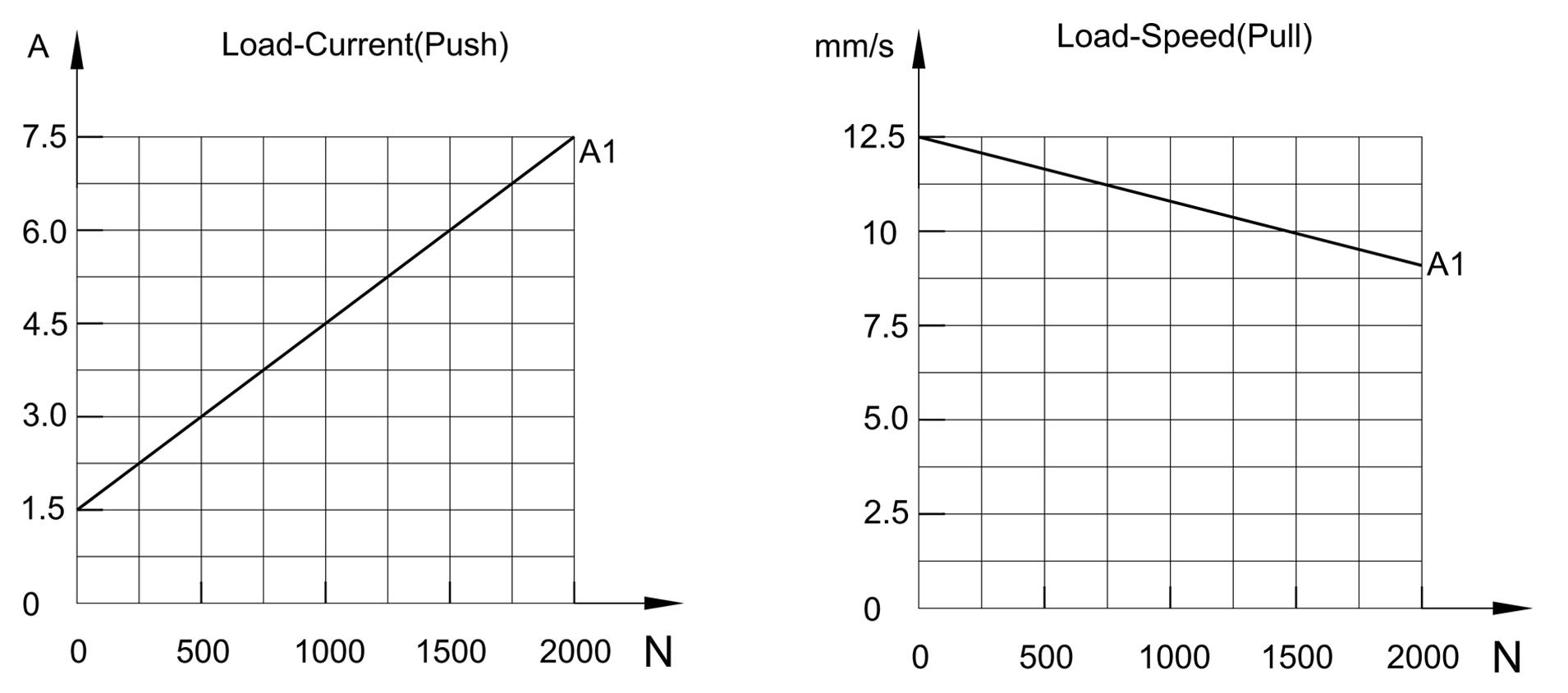

Parameters
NO. | Model | Voltage(V) | Max.static load(N) | Max.dynamic load(N) | Current (A) | Speed (mm/s) | |||
| Push | Pull | No load | Max.load | No load | Max.load | ||||
| A1 | SPT28 | 12 | 4000 | 2000 | 2000 | 1.5 | 7.5 | 12.5 | 9.1 |
