GA24
Guangdong H&I Actuator Technology Co., Ltd was founded in 2004, is China's leading electric push rod/lift motor manufacturer
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Quiet brushed DC motor
◆Zinc alloy gear housing
◆Enhanced powder metal gears
◆Low speed with high torque
◆Noise≤45dB
◆Protection:IP40
- Parameters
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Quiet brushed DC motor
◆Zinc alloy gear housing
◆Enhanced powder metal gears
◆Low speed with high torque
◆Noise≤45dB
◆Protection:IP40
Datasheets
| Items | Parameters |
| Working Voltage | 12VDC,24VDC |
| Rated Torque | >80kgf.cm |
| BlockingTorque | >200kgf.cm |
| Rated Current | 0.35A |
| Rotation Speed | 1.45RPM |
| Gear Ratio | 915:1 |

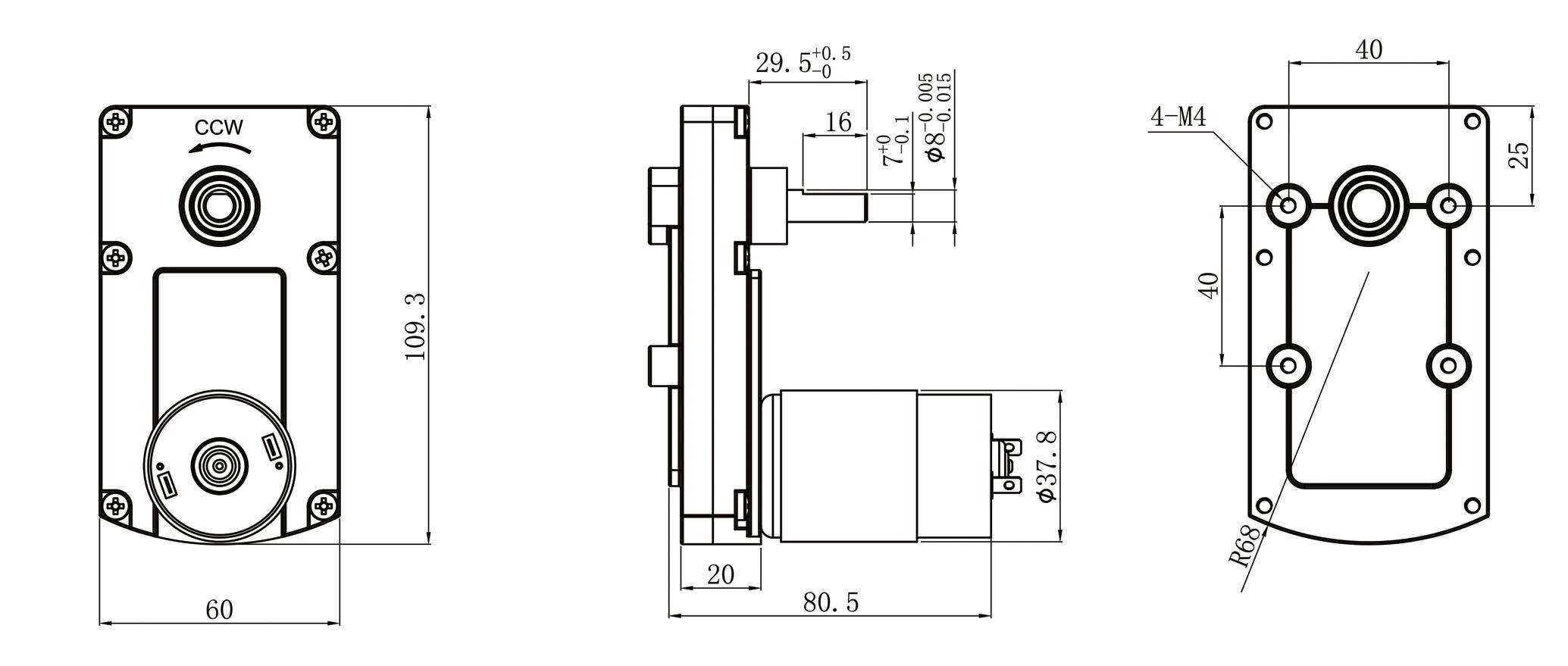

| Fixing Dimension | L=S+115 (29≤S≤160) |
Application
◆Smart Home
◆Automatic Vending Machine
◆Other
Parameters
| NO. | Model | Voltage(V) | Max.static load(N) | Max.dynamic load(N) | Current (A) | Rotation speed (rpm) | ||
| No load | Max.load | No load | Max.load | |||||
| A1 | GA24 | 12 | 1750 | 600 | 0.15 | 0.35 | 1.9 | 1.45 |
| A2 | 24 | 1750 | 900 | 0.08 | 0.18 | 1.9 | 1.45 | |
Product Profile

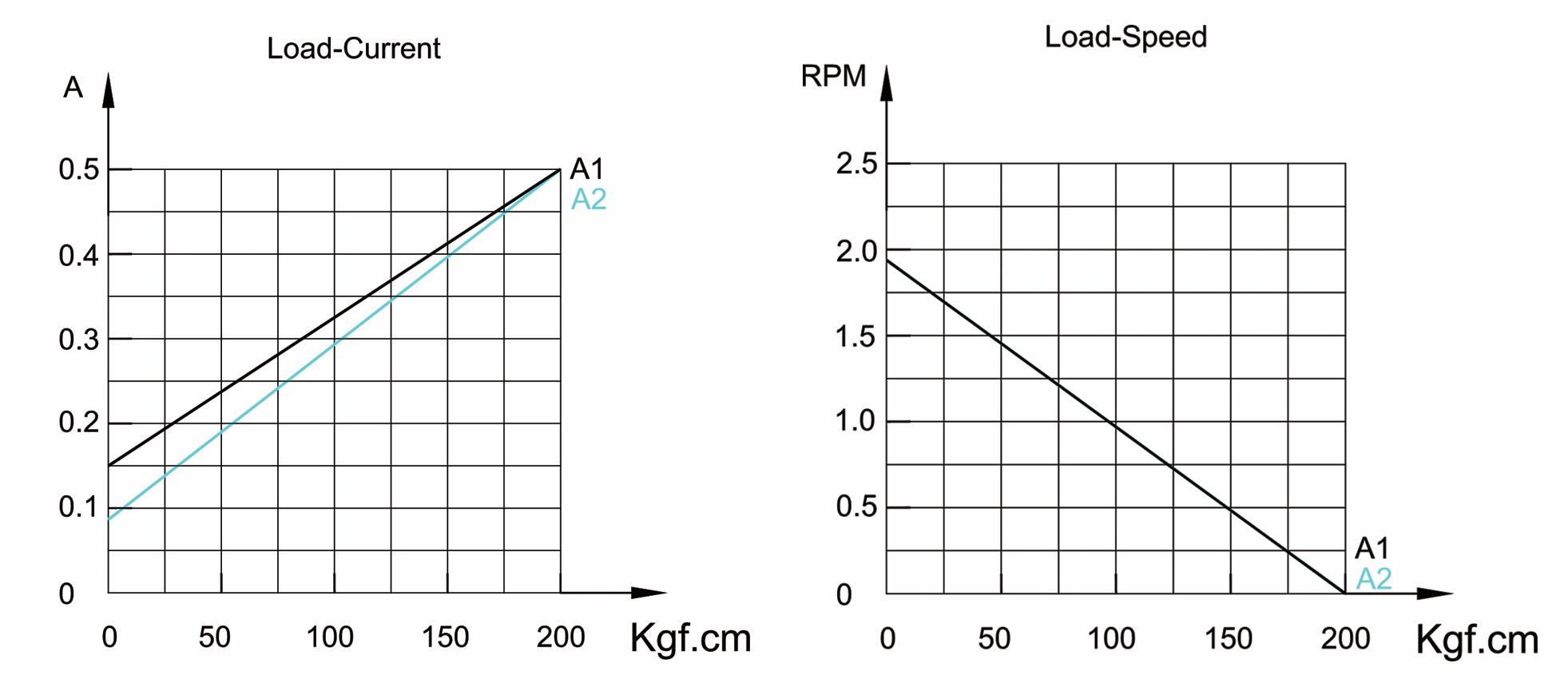

Performance Curve
