GD23
Guangdong H&I Actuator Technology Co., Ltd was founded in 2004, is China's leading electric push rod/lift motor manufacturer
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Aluminum gear housing
◆Enhanced powder metal gears
◆Aluminum piston rod
◆Aluminum outer shield
◆ACME screw
◆Built-in limit swith
◆Both for push and pull
◆Protection IP66
- Parameters
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Aluminum gear housing
◆Enhanced powder metal gears
◆Aluminum piston rod
◆Aluminum outer shield
◆ACME screw
◆Built-in limit swith
◆Both for push and pull
◆Protection IP66
Datasheets
| Working Voltage | 12VDC,24VDC |
| Duty Cycle | 10%(1min on,9 min off) |
| Push/Pull Force | 2000N/1000N |
| GearRatio | 10:1 20:1 30:1 40:1 |
| Fixing Dimension | L=S+100 (30≤S≤400) |
Application
◆smart Home
◆Automobile
◆Clean energy sweeper
◆Medical Equipment
◆Automatic Industry
◆Other
Options
◆Hall Effect sensor
◆Potentiometer
Certificate
◆CE
Parameters
| NO. | GearRatio | Voltage(V) | Max.static load(N) | Max.dynamic load (N) | Current (A) | Speed(mm/s) | ||
| No load | Max.load | No load | Max.load | |||||
| A1 | 10:1 | 24 | 2500 | 600 | 0.8 | 3.5 | 20 | 15 |
| A2 | 20:1 | 24 | 2500 | 900 | 0.8 | 3.5 | 10 | 7 |
| A3 | 30:1 | 24 | 2500 | 1350 | 0.8 | 3.5 | 6.7 | 5 |
| A4 | 40:1 | 24 | 2500 | 2000 | 0.8 | 3.5 | 5.5 | 3.5 |
Product Profile

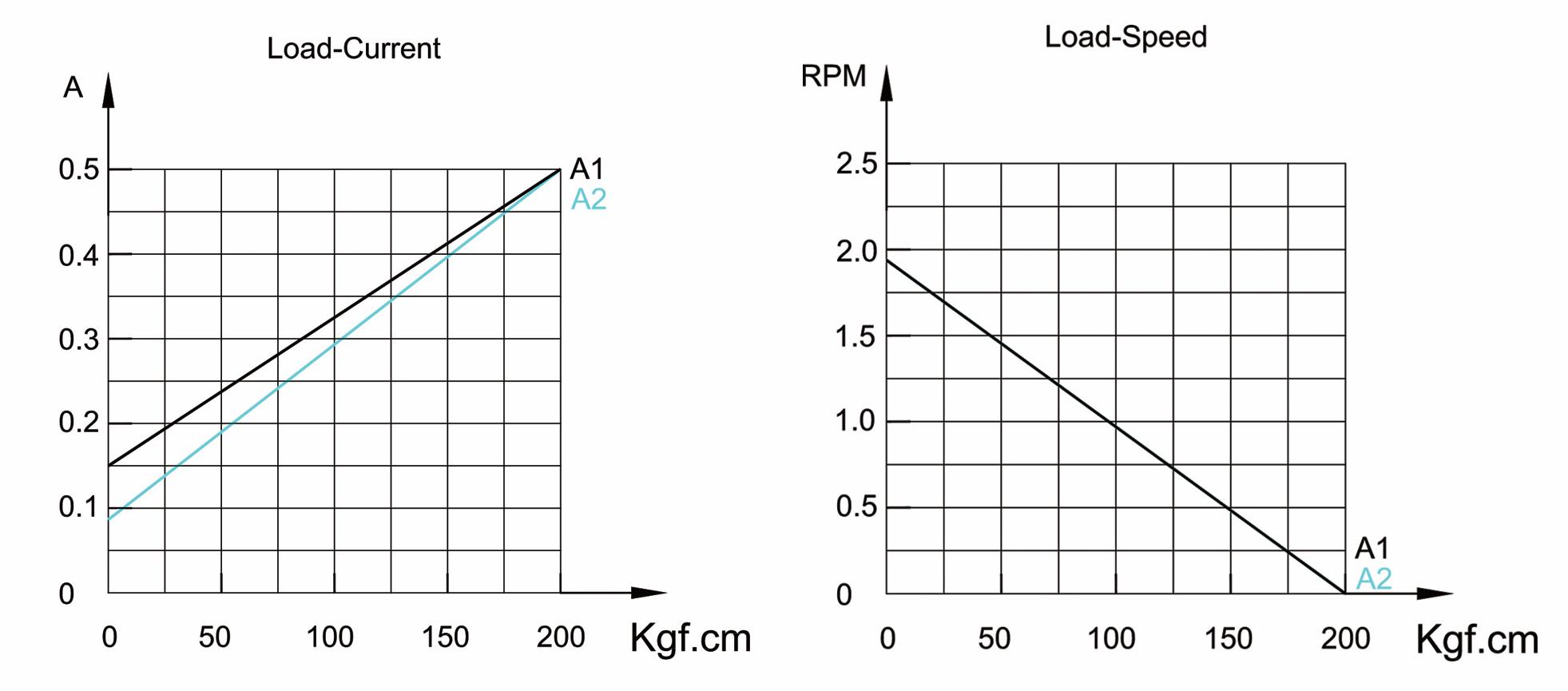

Performance Curve
