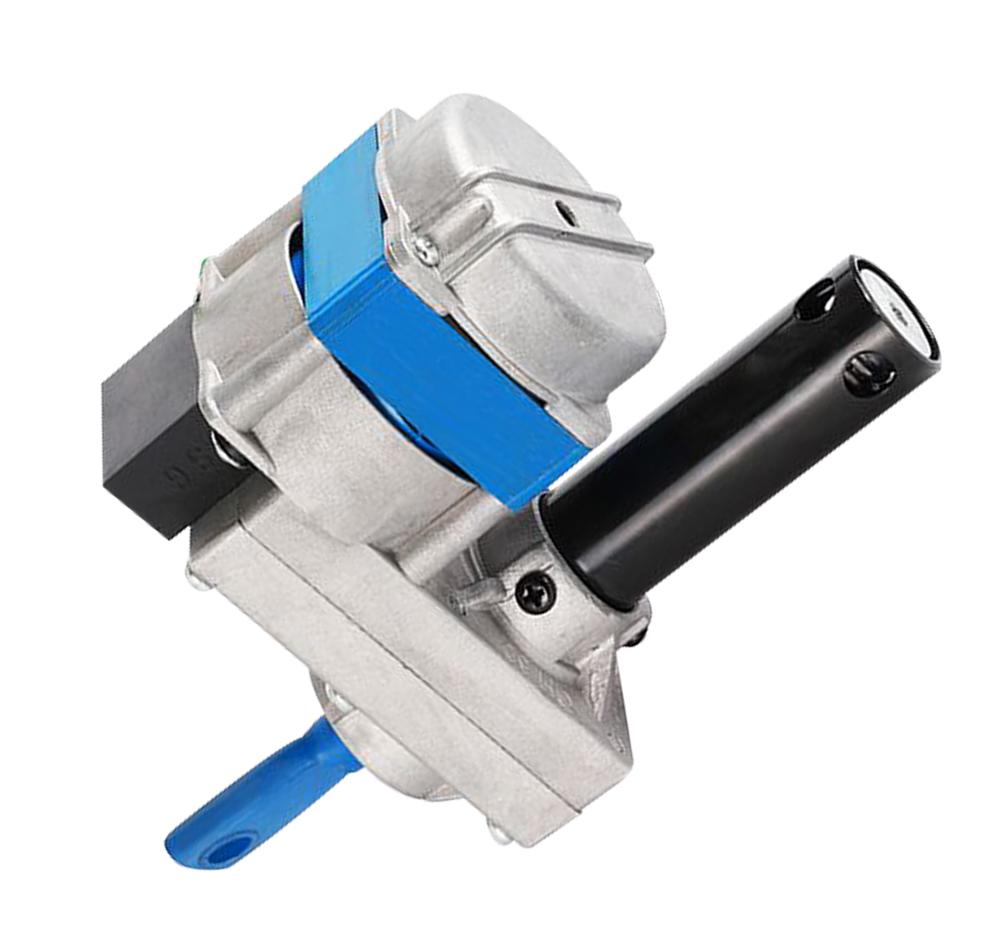

GH60
Guangdong H&I Actuator Technology Co., Ltd was founded in 2004, is China's leading electric push rod/lift motor manufacturer
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Aluminum gear housing
◆Enhanced plastic gears
◆Metal inner tube
◆ACME screw
◆Built-in start capacitor
◆Built-in thermal protector(115C)
◆Protection:IP00
- Parameters
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Aluminum gear housing
◆Enhanced plastic gears
◆Metal inner tube
◆ACME screw
◆Built-in start capacitor
◆Built-in thermal protector(115C)
◆Protection:IP00
Datasheets
| Items | Parameters |
| Working Voltage | 110V/220VAC,50Hz/60Hz |
| Duty Cycle | 10%(1min running,9min rest) |
| Push Force | 2000N (Max.) |
| Gear Ratio | 67:1 |
| Thrust Speed | 2.7mm/sec (Max.) |

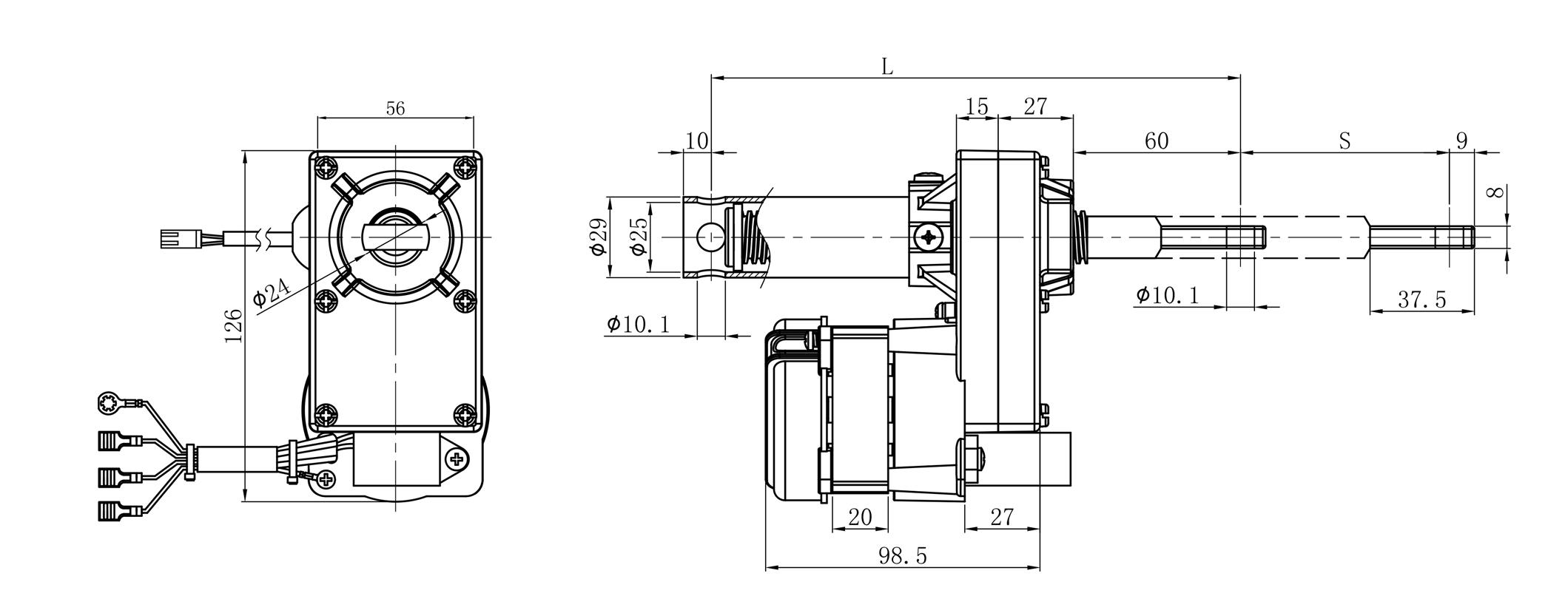

| Fixing Dimension | L=S+115 (29≤S≤160) |
Application
◆Treadmill
◆Other
Option:
◆Reed Sensor
Certificate:
◆CCC/CE
Parameters
| NO. | Model | Voltage (V) | Max.static load(N) | Max.dynamic load(N) | Current (A) | Speed (mm/s) | ||
| No load | Max.load | No load | Max.load | |||||
| A1 | GH60-6020 | 110 | 8000 | 2000 | 0.6 | 0.8 | 2.7 | 2.2 |
| A2 | 220 | 8000 | 2000 | 0.35 | 0.4 | 2.3 | 1.7 | |
Product Profile

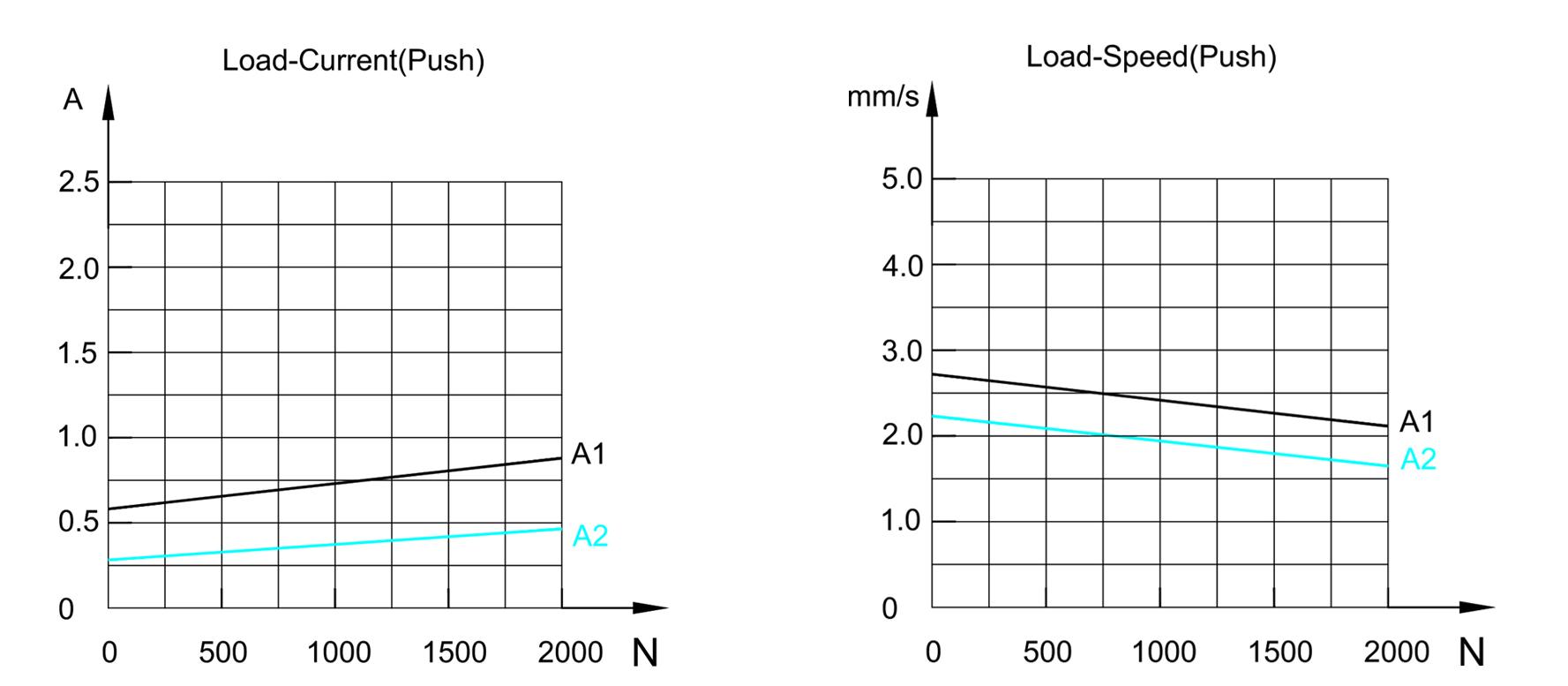

Performance Curve
