GS141-D242
Guangdong H&I Actuator Technology Co., Ltd was founded in 2004, is China's leading electric push rod/lift motor manufacturer
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features

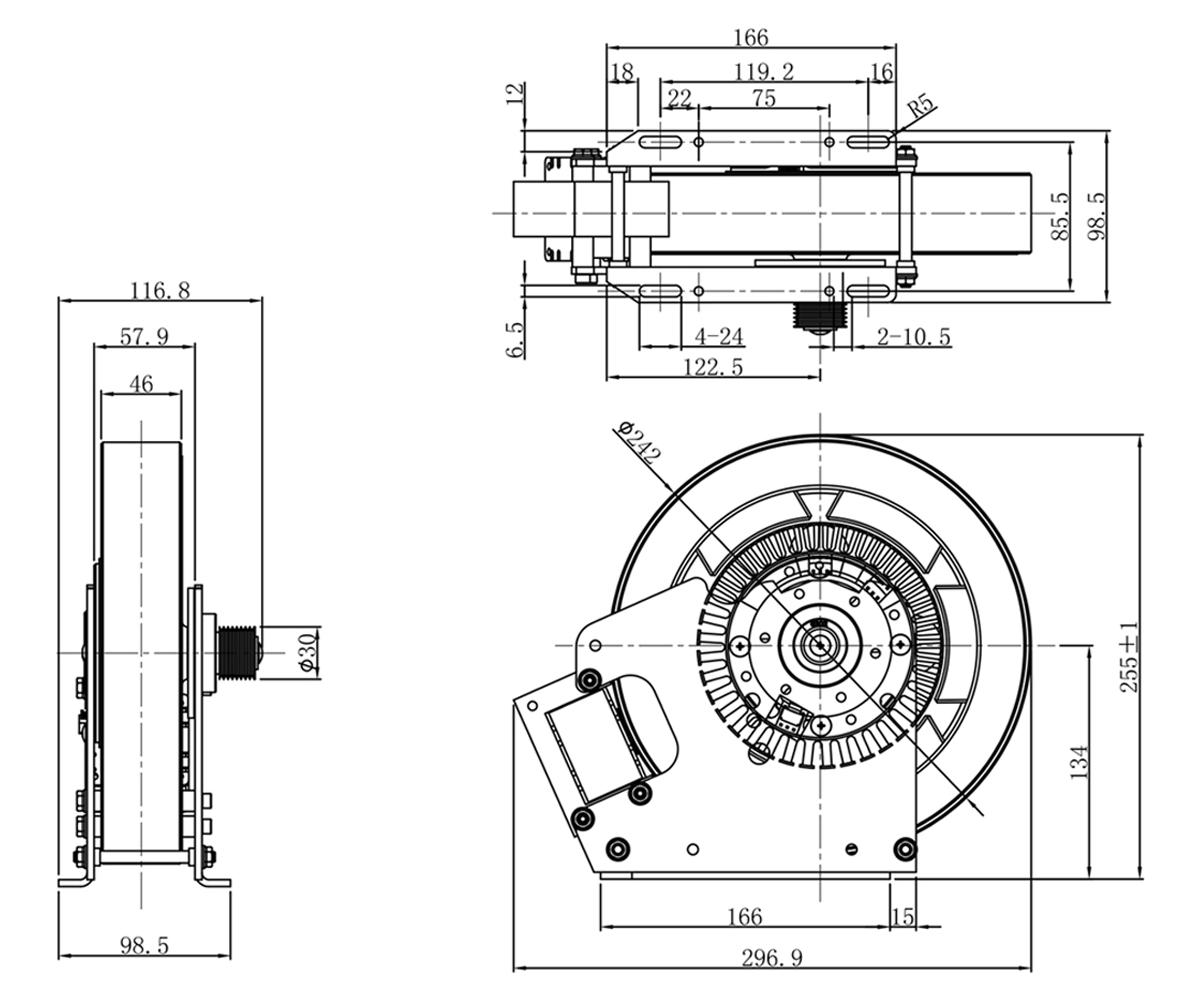

◆Dimensions:297*255*117mm
◆Belt wheel:φ30(customize)
◆Fixing dimensions:85.5*134mm(customize)
◆Flywheel Runout:≤0.15mm
◆Magnet/Power leads:620mm(customize)
◆Coil Resistance:25Q
◆Output Voltage:24±3VAC(152 RPM)
◆Magnet:Resistance:12Q/180C
◆Voltage Withstand:1250V/1mA/3s
◆Power Rate:350W
◆Two-way Generation
- Parameters
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Dimensions:297*255*117mm
◆Belt wheel:φ30(customize)
◆Fixing dimensions:85.5*134mm(customize)
◆Flywheel Runout:≤0.15mm
◆Magnet/Power leads:620mm(customize)
◆Coil Resistance:25Q
◆Output Voltage:24±3VAC(152 RPM)
◆Magnet:Resistance:12Q/180C
◆Voltage Withstand:1250V/1mA/3s
◆Power Rate:350W
◆Two-way Generation
