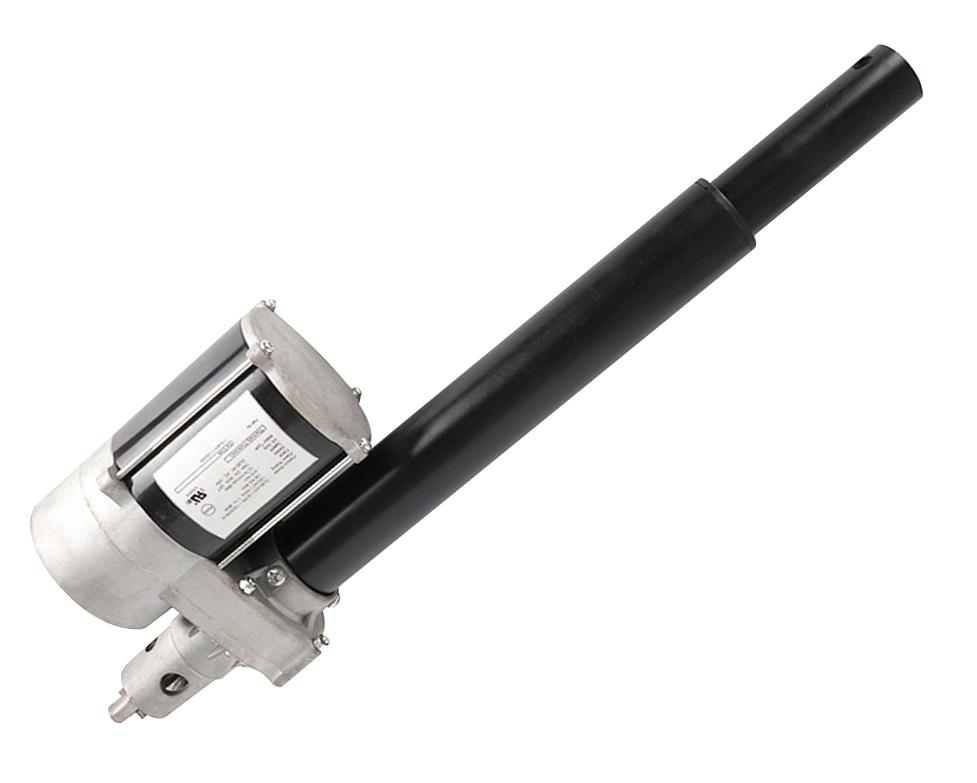

GL82
Guangdong H&I Actuator Technology Co., Ltd was founded in 2004, is China's leading electric push rod/lift motor manufacturer
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Aluminum gear housing
◆Enhanced plastic gears
◆Metal inner tube
◆Metal protection shield
◆ACME screw
◆Built-in start capacitor
◆Buit-in themal protector(125°C)
◆Built-in default cam system
◆Built-in limit switch
◆Both for push and pull
◆Protection IP40
- Parameters
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆Aluminum gear housing
◆Enhanced plastic gears
◆Metal inner tube
◆Metal protection shield
◆ACME screw
◆Built-in start capacitor
◆Buit-in themal protector(125°C)
◆Built-in default cam system
◆Built-in limit switch
◆Both for push and pull
◆Protection IP40
Datasheets
| Working voltage | 110V/220V AC,50Hz/60Hz |
| Duty Cycle | 10%(1min running,9min rest) |
| Push/Pull Force | 6000N/4000N (Max.) |
| Gear Ratio | 13.4:1/16.5:1/22:1 |
| Thrust Speed | 10.5mm/sec (Max.) |
Application
◆Fitness Equipment
◆Agriculture / Industry
◆Medical Equipment
◆Other
Options
◆Potentiometer
◆Optical Encoder
Certificate
◆CCC/UL/CE
Parameters(Gearratio221)
| NO. | Model | Voltage (V) | Max.static load(N) | Max.dynamic load(N) | Current (A) | Speed(mm/s) | ||
| No load | Max.load | No load | Max.load | |||||
| A1 | GL82-8235 | 110 | 8000 | 4000 | 1 | 1.5 | 4.2 | 3.4 |
| A2 | 220 | 8000 | 4000 | 0.4 | 0.7 | 3.5 | 2.7 | |
| B1 | GL82-8245 | 110 | 8000 | 4000 | 1.3 | 1.7 | 4.2 | 3.4 |
| B2 | 220 | 8000 | 4000 | 0.6 | 0.8 | 3.5 | 2.7 | |

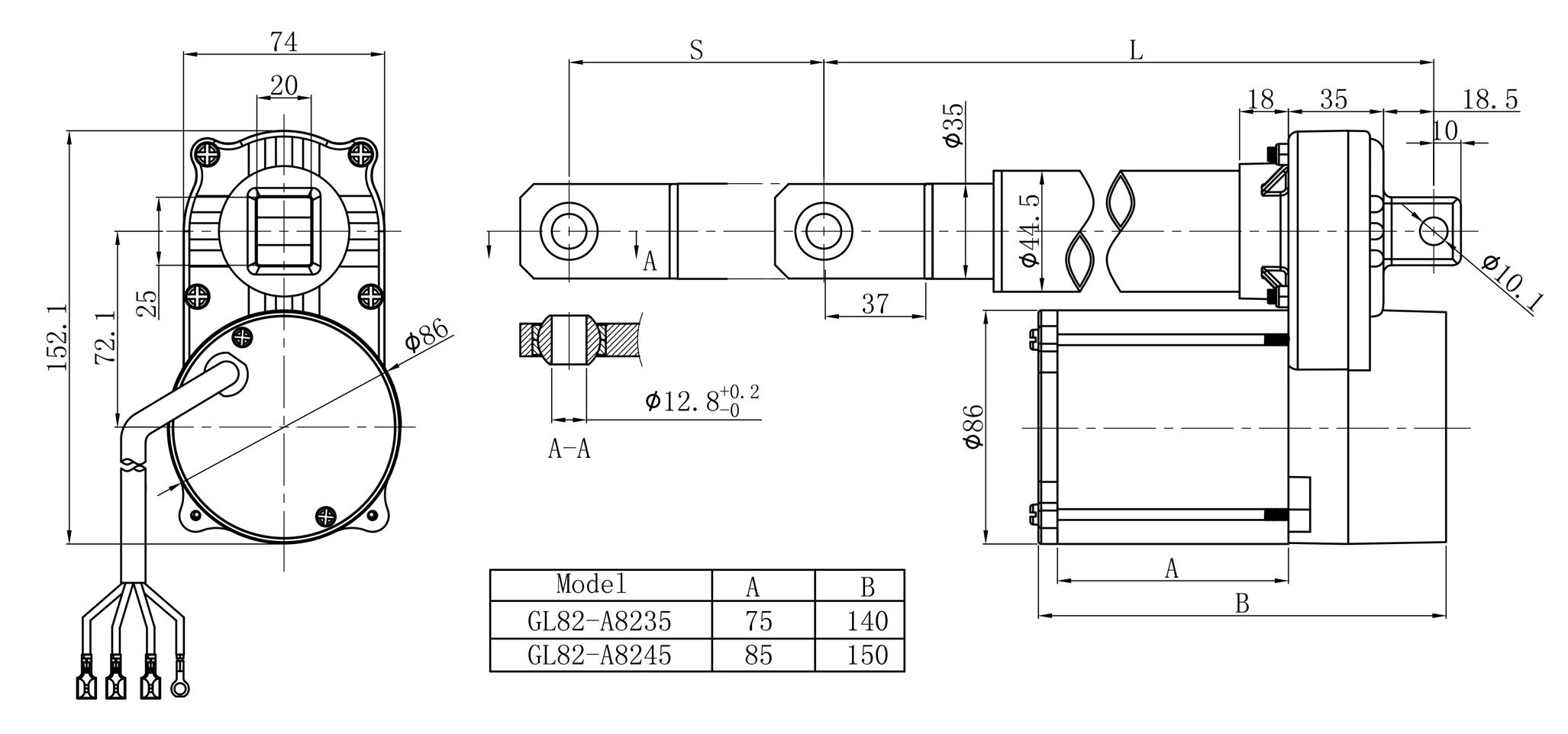

Product Profile

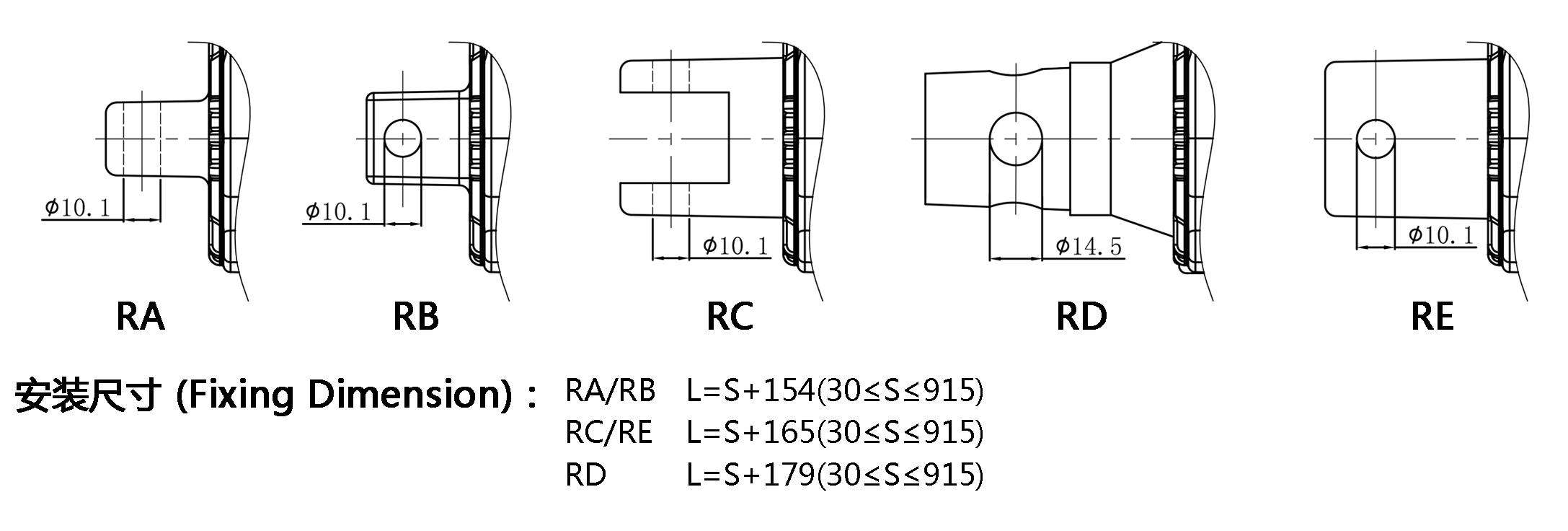

OptionalFixing style

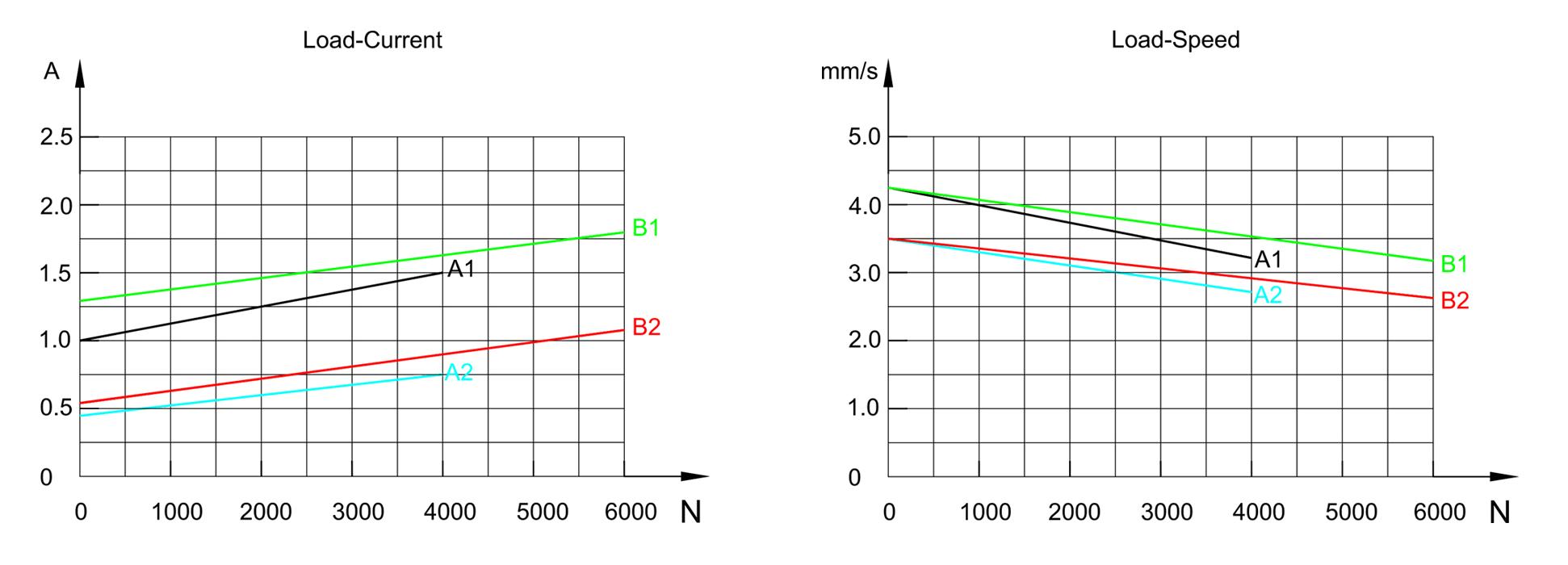

PerformanceCurve
