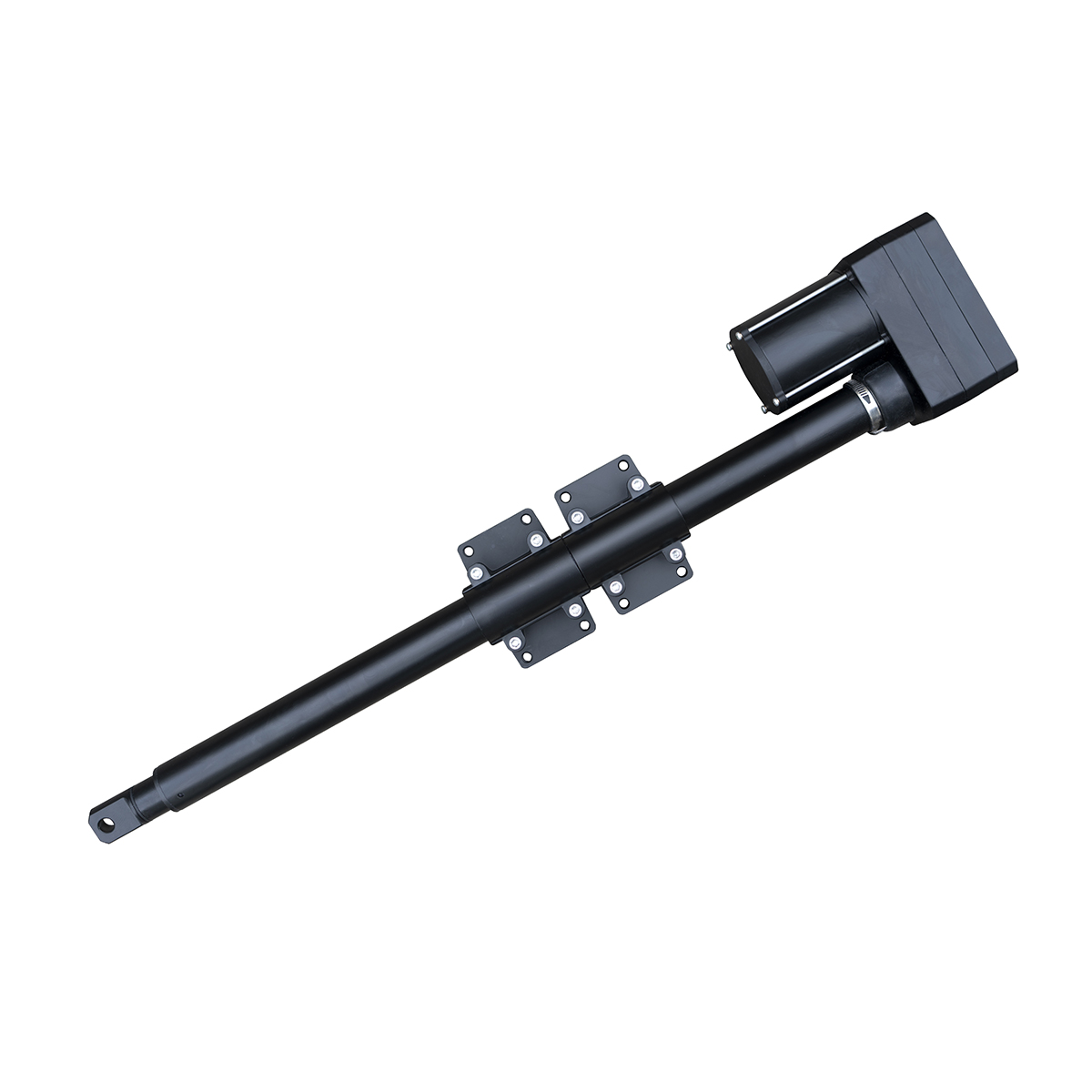

U12
Guangdong H&I Actuator Technology Co., Ltd was founded in 2004, is China's leading electric push rod/lift motor manufacturer
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆U12B is designed for livestock smart ventilation system with Pot feedback. It can connect to 120V or 220V AC power, with manual stroke adjustment and manual release
- Parameters
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆U12B is designed for livestock smart ventilation system with Pot feedback. It can connect to 120V or 220V AC power, with manual stroke adjustment and manual release
Datasheets
| Rated Voltage | AC 120/220V, 50/60Hz, DC24V |
| Rated Load | 5,000N (Push & Pull) |
| Max. Load | 6000N |
| Stroke | 12” 18” 24” 36” 48” (300/450/600/900/1200mm) |
| Speed | 4.5mm/s@220VAC, 50Hz; 5.5mm/s @ 120VAC, 60Hz |
| IP Class | IP66 |
| Duty Cycle | 10% ( 2min ON/ 18min OFF), 4min Max. |
| Thermal Protection | Installed, 125±5℃ |
| Feedback | 10K 10turns Pot( Option) |
| Ambient Temp | -20 - +50℃ |
| Emergency | Manual release |
PARAMETERS
| NO. | Model | Voltage/Frequency | Power Consumption(W) | Rated Load (N) | Rated Current(A) | Rated Speed(mm/s) | |
| Push | Pull | ||||||
| A1 | GR82-8230 | 110-120VAC/60Hz | 230 | 5000 | 5000 | 1.9 | 5.5 |
| A2 | 220-240VAC/50Hz | 220 | 5000 | 5000 | 1.0 | 4.5 | |
| A3 | 24VDC | 108 | 5000 | 5000 | 4.5 | 6.5 | |
| Standard Motor(1450/1750RPM) | |||||||

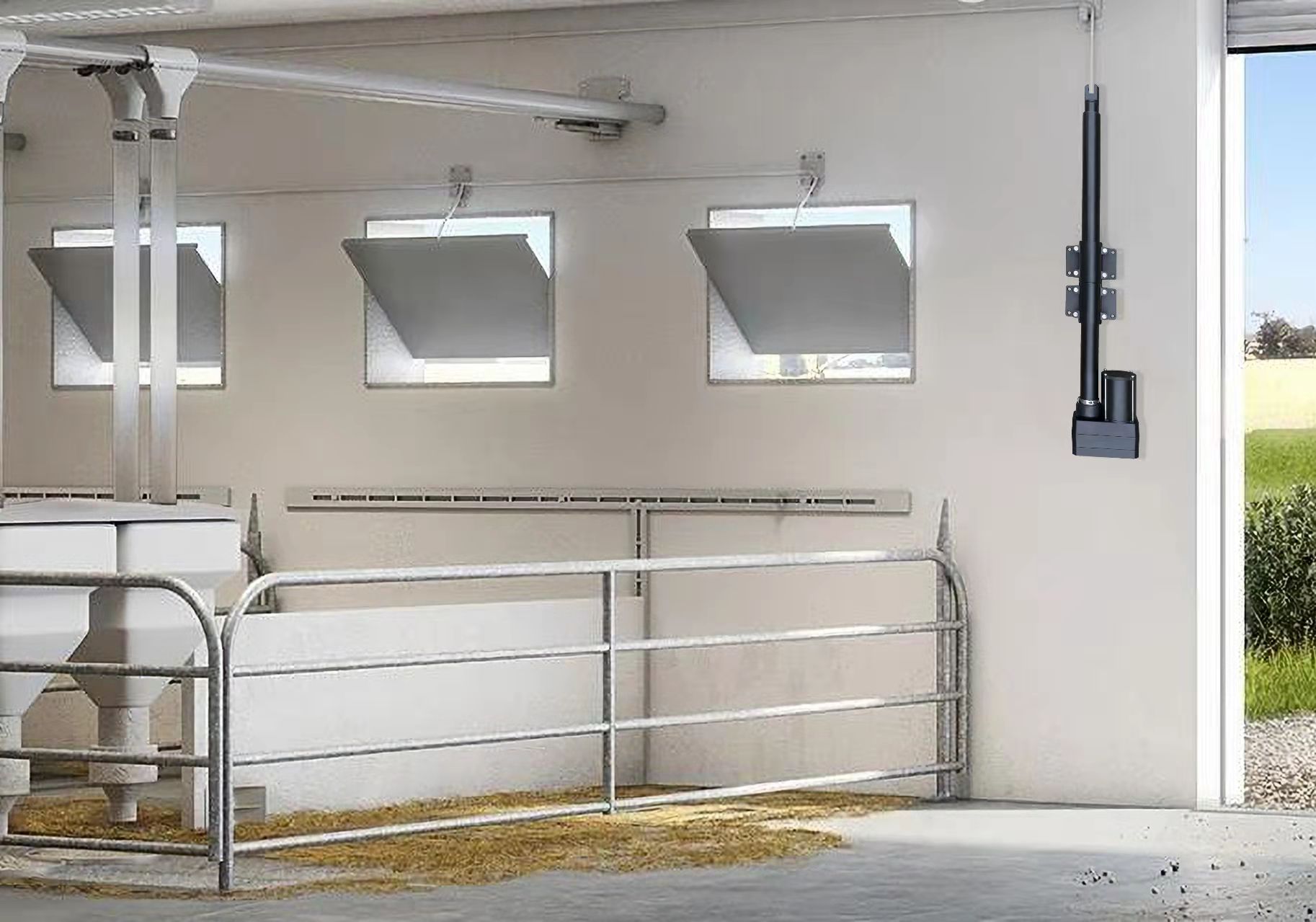

U12Applications
