Guangdong H&I Actuator Technology Co., Ltd was founded in 2004, is China's leading electric push rod/lift motor manufacturer
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features

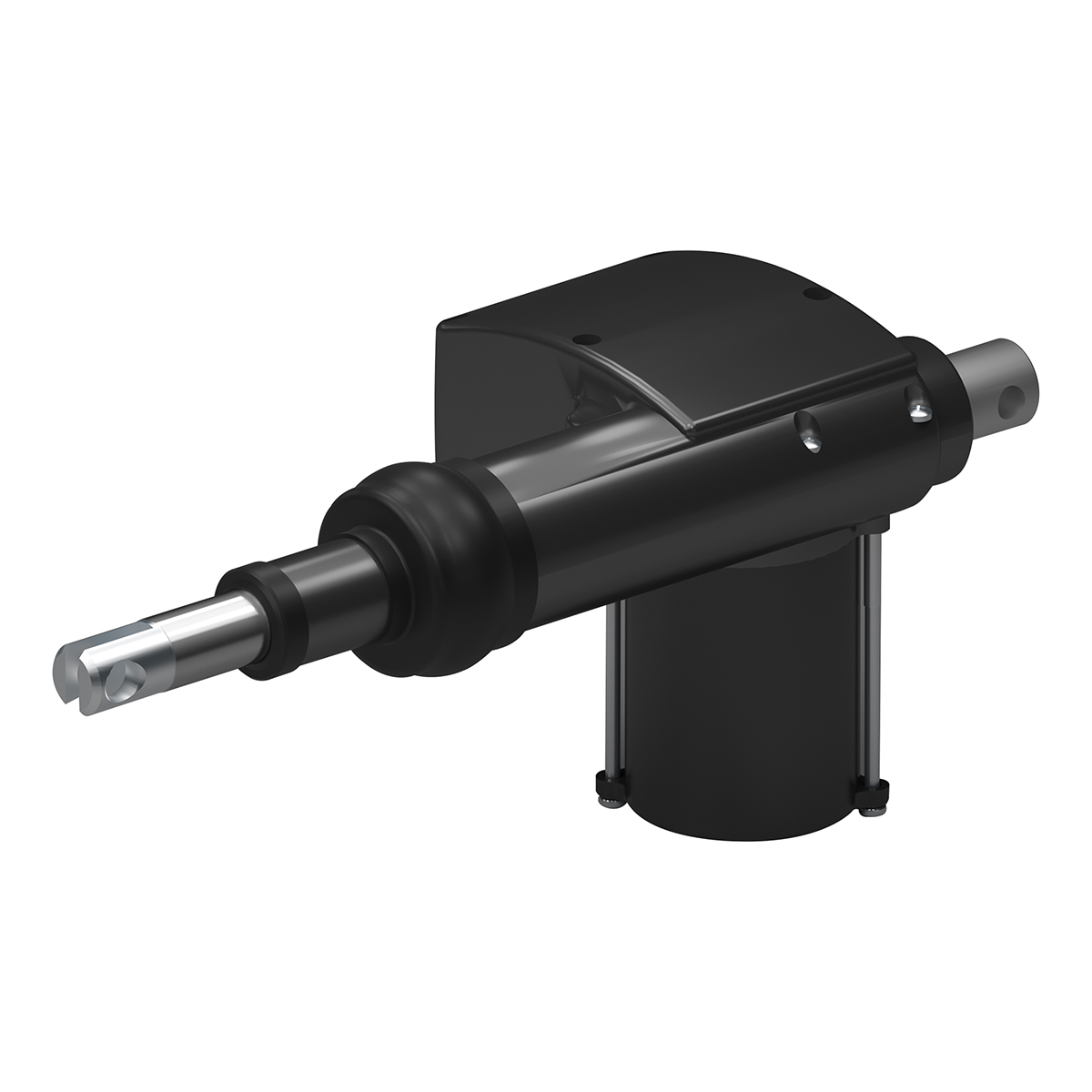

◆The U13 is suitable for intelligent automatic feeding system and temperature control system in the aquaculture industry. It can be directly connected to 120V or 220V AC, which is very easy to use.
- Parameters
The company specializes in the production of linear drive, bidirectional spontaneous motor, AC variable frequency motor, lifting motor, decelerating motor and so on. Products are widely used in fitness equipment (treadmill, spinning bike), smart home (lifting bed, massage chair, lifting table, electric sofa, window opener, door opener, etc.), vending machine, medical equipment (medical bed, dentist bed, nursing bed, etc.), automation industry and agriculture and other fields.
Features
◆The U13 is suitable for intelligent automatic feeding system and temperature control system in the aquaculture industry. It can be directly connected to 120V or 220V AC, which is very easy to use.
Datasheets
| Rated Voltage | AC 120/220V, 50/60Hz, DC24V |
| Load Capacity | 3,500N Rated (Push/Pull) |
| Load Capacity | 4,000N Max. (Push/Pull) |
| Load Current | ≤0.75amp(50Hz)/ ≤1.4amp(60Hz) |
| Stroke | 150-350mm |
| Speed | 4.2mm/s±5% |
| Feedback | 10K 10turns Pot( Option) |
| Duty Cycle | 10% ( 2min ON/ 18min OFF), 4min Max. |
| IP Class | IP66 |
| Noise | ≤65dB |
| Limit Switch | Built in |
Parameters
| NO. | Model | Voltage/Frequency | Power Consumption(W) | Rated Load(N) | Rated Current(A) | Rated Speed(mm/s) | |
| Push | Pull | ||||||
| A1 | U13 | 110-120VAC/60Hz | 170 | 3500 | 3500 | 1.5 | 4.7 |
| A2 | 220-240VAC/50Hz | 165 | 3500 | 3500 | 0.7 | 4.2 | |
| Standard Motor (1450/1750RPM) | |||||||

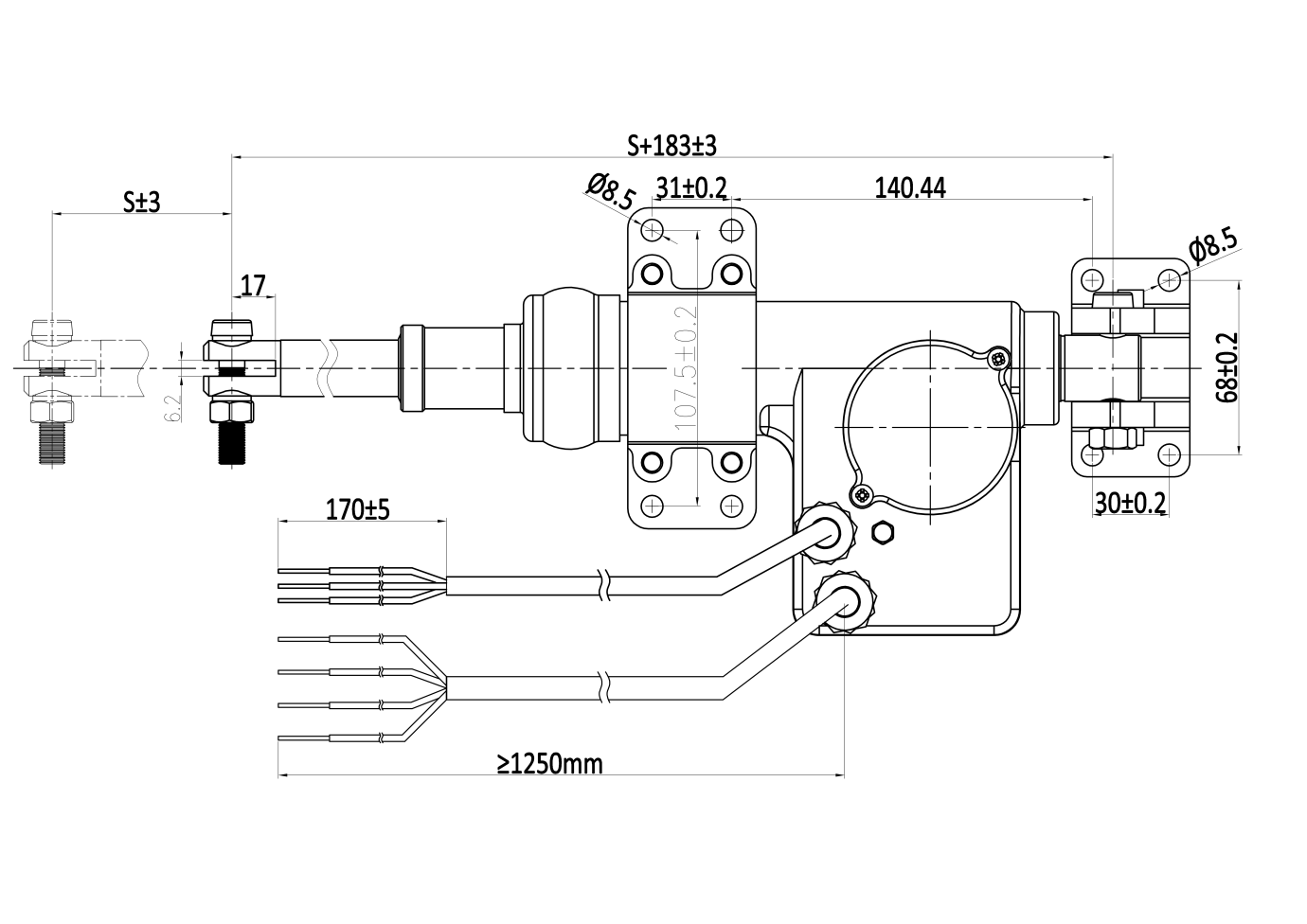

Product Profile
Cable Connector
Power cable connection

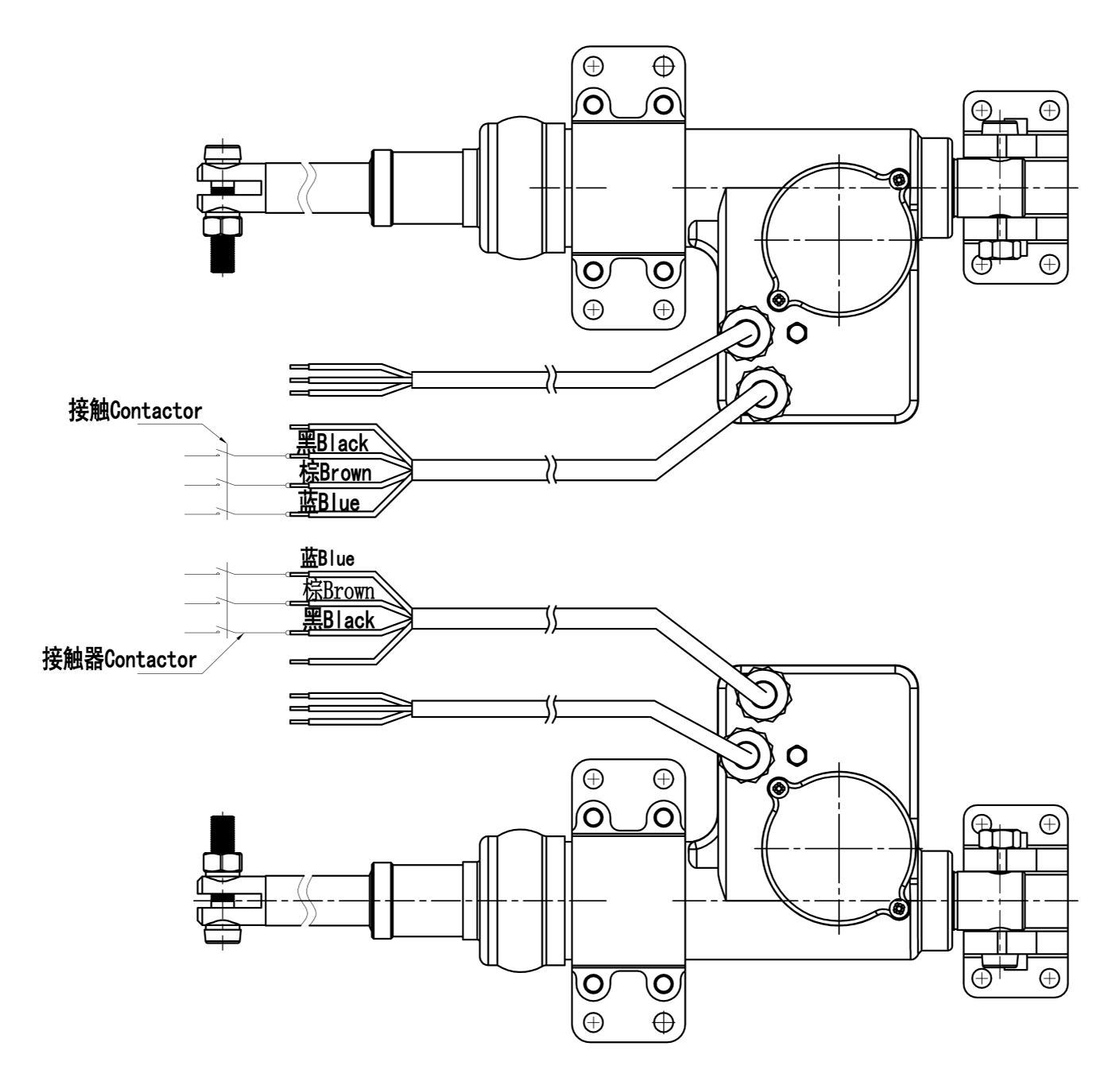

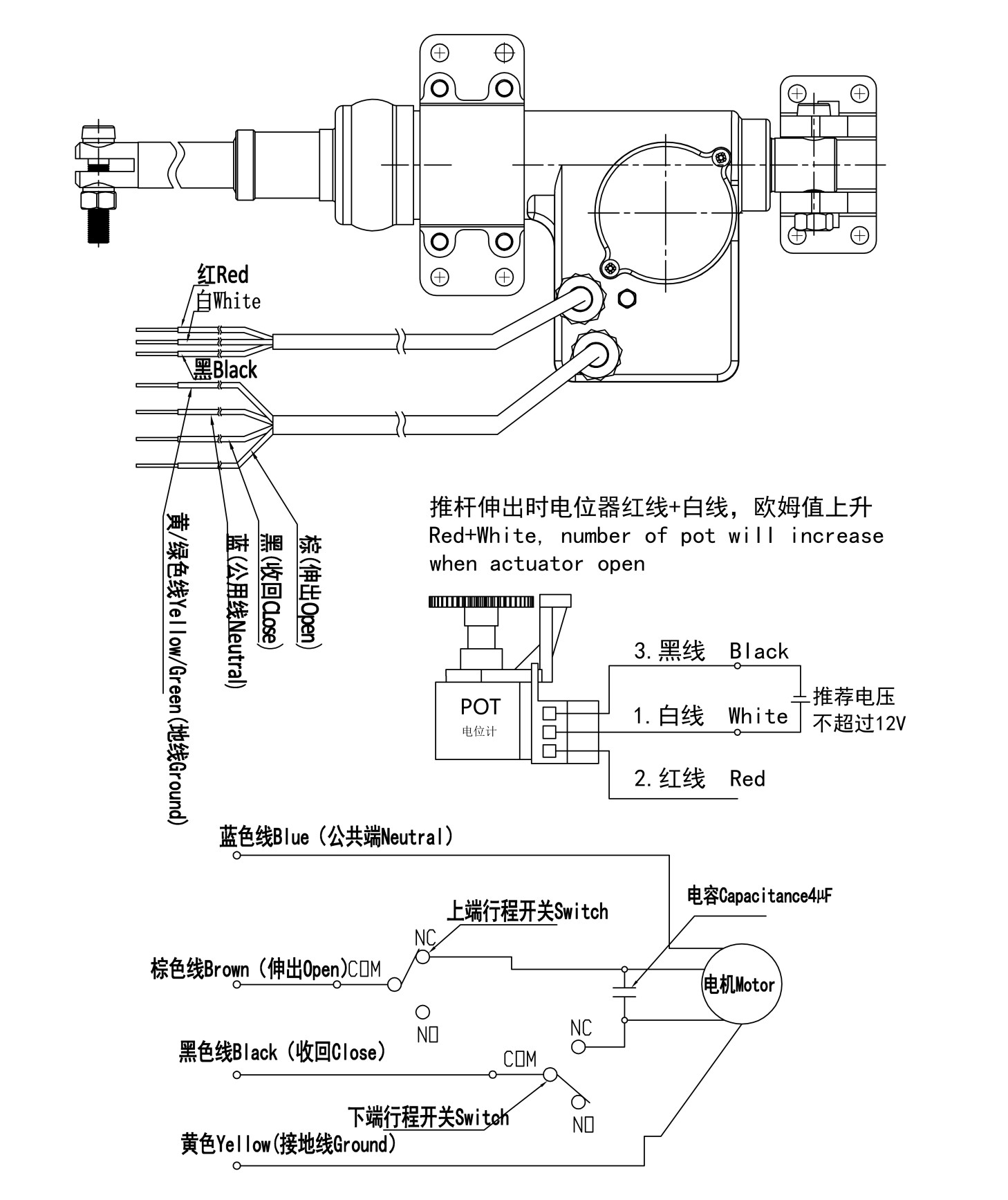

Power line is four-core. Blue is common. Actuator is retracted when brown is connected to Neutral. Actuator is Extend when connecting to neutral. Yellow/green is to ground
Signal cable connection

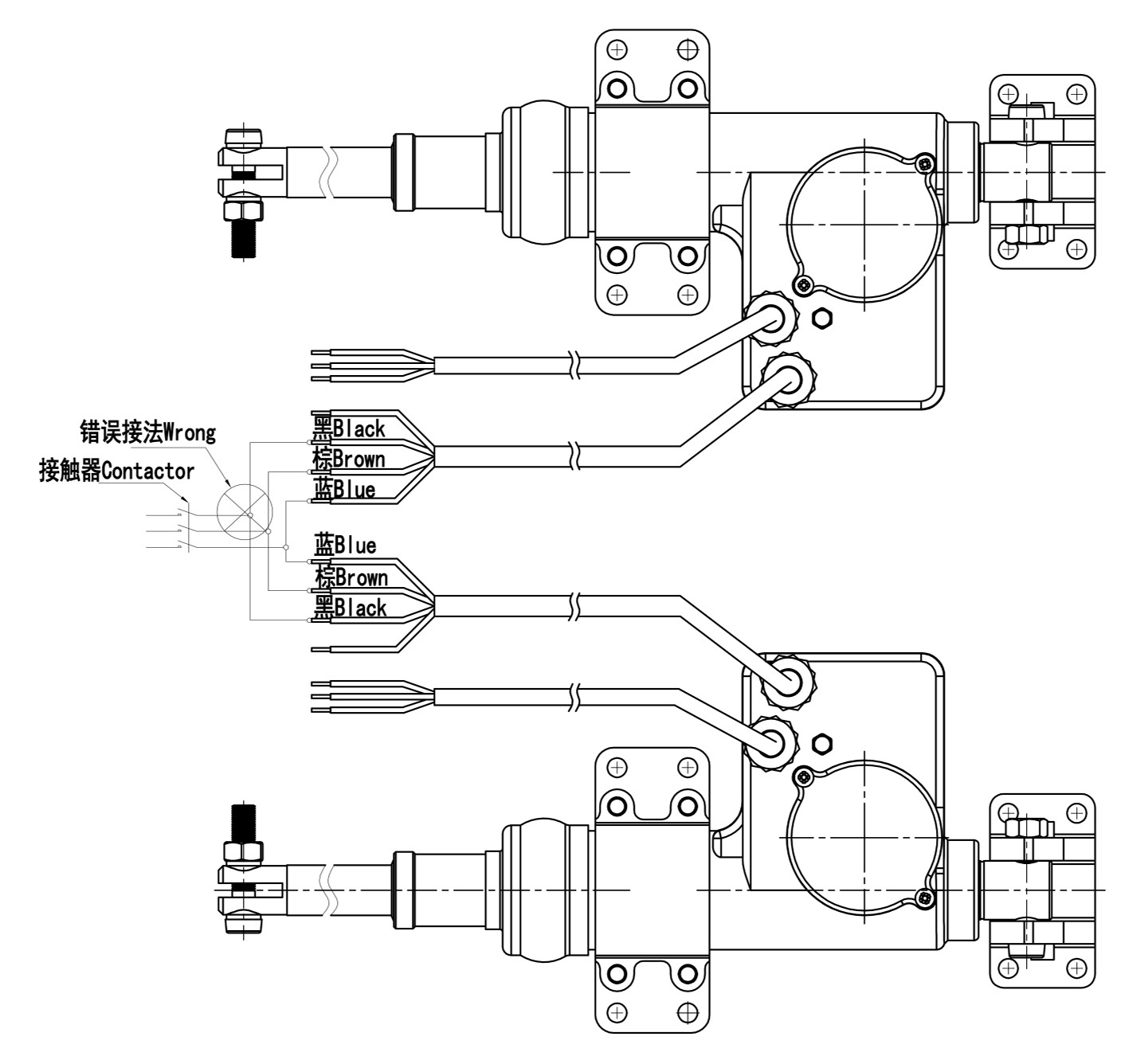

Please do not connect 2 actuators in the same power supply or switch.
Right way
Installation

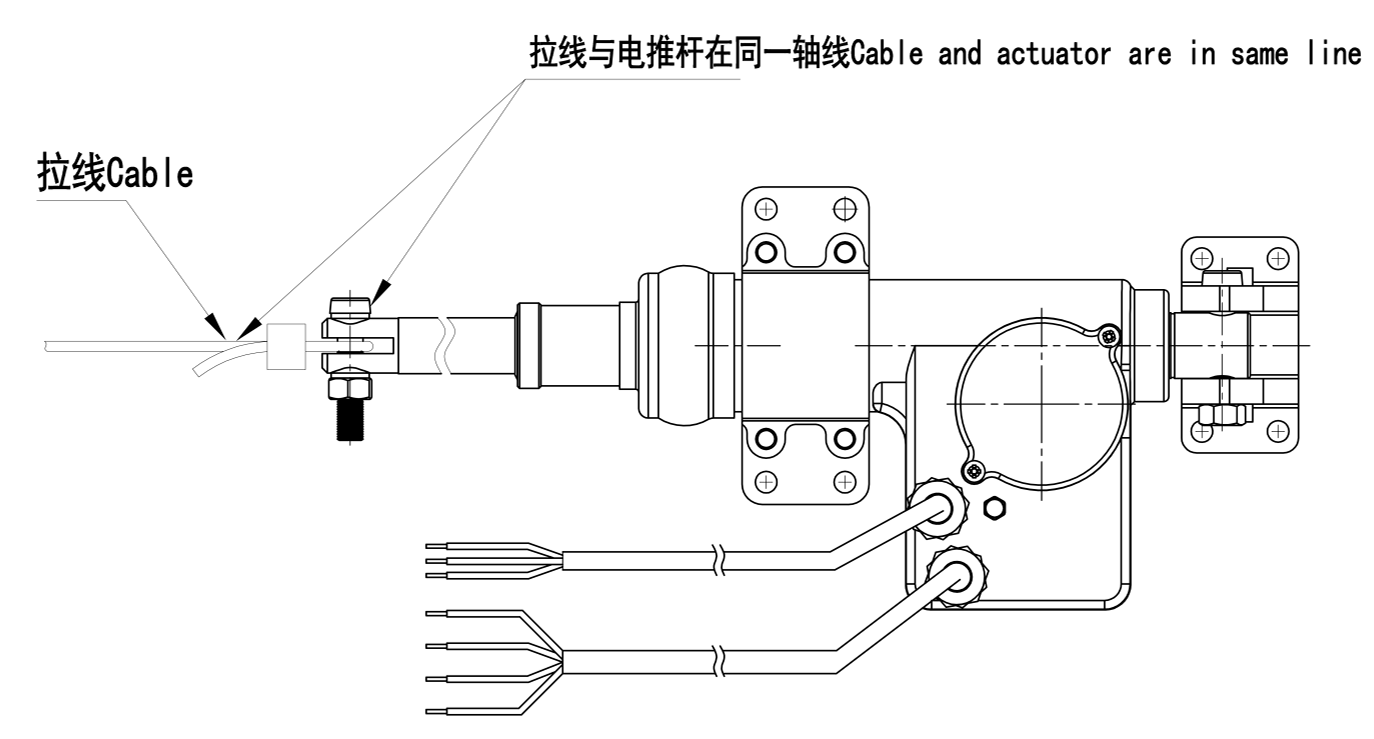

It is necessary to ensure that actuator and wire are in the same line

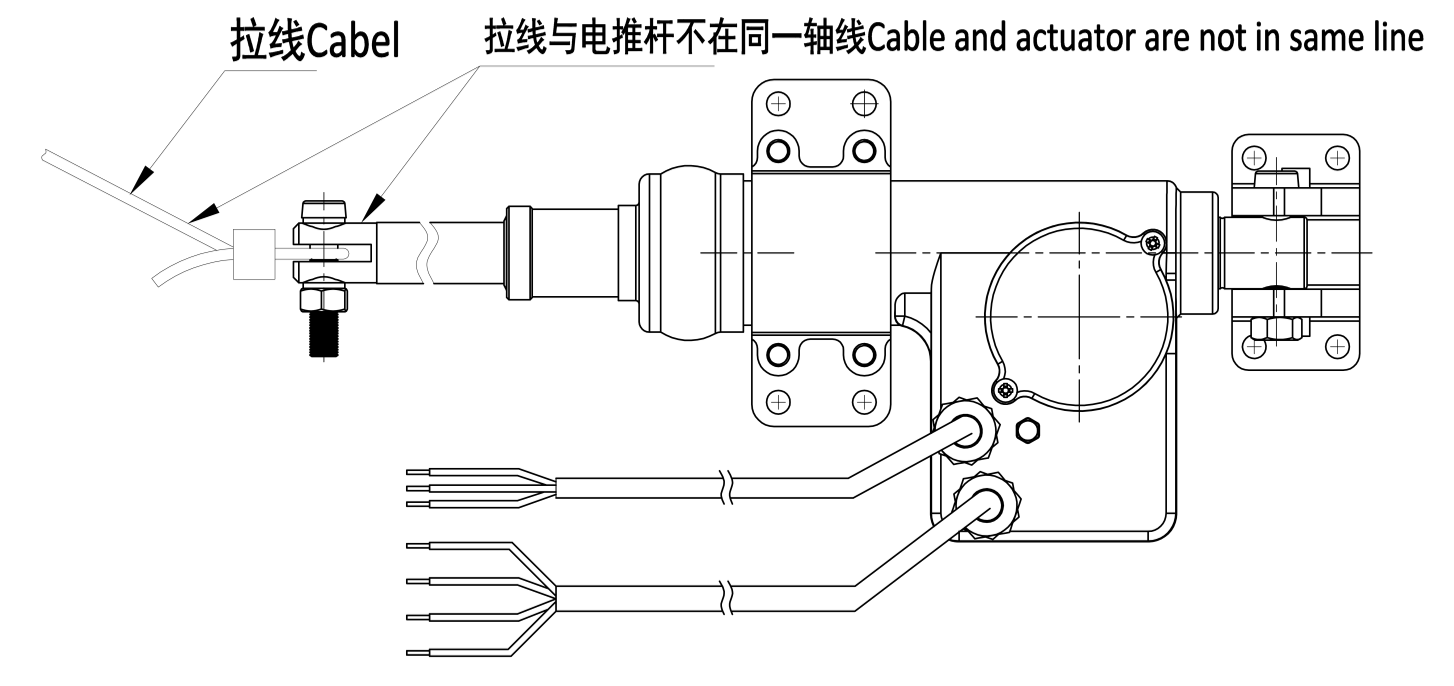

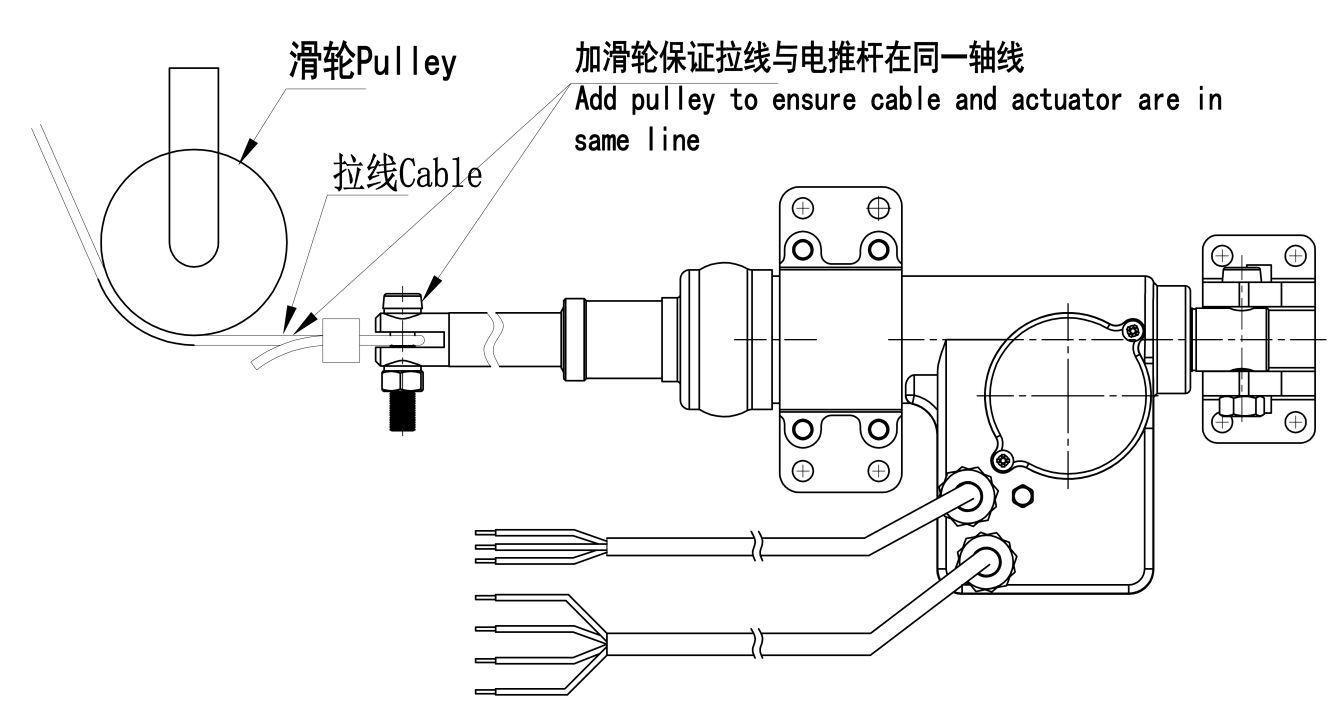

Please avoid actuator and wire not in the same line, or you can add a pulley to change direction. Otherwise it may damage actuator
Right way
Warning
1.The power must be turned off before installation
2.The fixed seat must be firmly fixed with the wall to prevent loosening during work
3.The installation plane must be flat, otherwise actuator will be damaged
Installation/ Maintenance
1.The cable must be on the same line as actuator inner tube
2.Check the power cord and connect it to the power supply correctly according to the power cord sticker

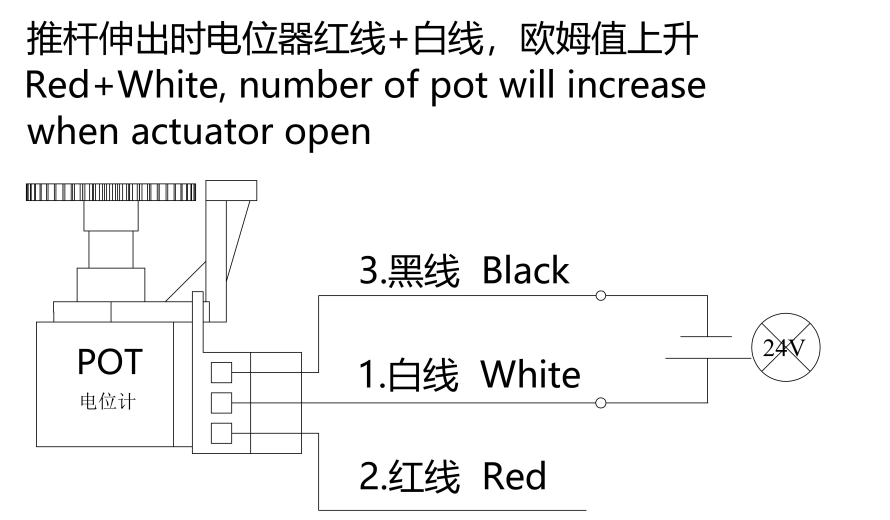

3.Check the pot wire and connect it correctly with the control box according to the pot sticker. DO not connect it to more than 12VDC
4.Do not directly spray actuator with a high-pressure water gun
5.DO not touch actuator when it is running
FAQ
Q: Actuator stops working after several cycles
A: Thermal protector is set to prevent actuator from damage. We would recommend stopping and cool it. Then you can start again.
Q: No signal come out from actuator
A: Please check connection, or contact with the supplier
Q: Actuator does not stop when limit switch is off
A: Do not disassemble and repair by yourself, please feedback to the supplier
Q: Actuator moves forward and back at 0mm stroke repeatedly
A: Please check whether actuator is overload，or 2 actuators are powered by 1 power supply
